SILOS

Unsere Silos lagern Ihr hochwertiges Schüttgut schonend und wirtschaftlich. Sie sichern die innerbetriebliche Materialversorgung und vermeiden Versorgungsengpässe.
Wir berücksichtigen bei der Siloauslegung die Eigenschaften Ihres Schüttguts und die individuellen Lasten für die statische Berechnung (Windlasten, Erdbebenlasten, Schneelasten) und passen die Silokomponenten exakt an Ihre Bedürfnisse an.

Innen-Silos

Außen-Silos

Doppel­kammer-Silos

Verlade-Silo

Jetzt anfragen!
Innen-Silo ∢90

Ø 1250

  m³ h H α n
SIF.1250.001.XX.90.AL 1.4 1000 2100 0° 3
SIF.1250.002.XX.90.AL 2.6 2000 3100 0° 3
SIF.1250.003.XX.90.AL 3.9 3000 4100 0° 3
SIF.1250.005.XX.90.AL 5.1 4000 5100 0° 3

Ø 1590

  m³ h H α n
SIF.1590.003.XX.90.AL 3.0 1250 2520 0° 3
SIF.1590.004.XX.90.AL 4.2 1875 3145 0° 3
SIF.1590.005.XX.90.AL 5.5 2500 3770 0° 3
SIF.1590.006.XX.90.AL 6.7 3125 4395 0° 3
SIF.1590.008.XX.90.AL 8.0 3750 5020 0° 3

Ø 1900

  m³ h H α n
SIF.1900.005.XX.90.AL 5.1 1500 2950 15° 3
SIF.1900.007.XX.90.AL 7.2 2250 3700 15° 3
SIF.1900.009.XX.90.AL 9.4 3000 4450 15° 3
SIF.1900.011.XX.90.AL 11.5 3750 5200 15° 3
SIF.1900.013.XX.90.AL 13.5 4500 5950 15° 3

Ø 2400

  m³ h H α n
SIF.2400.007.XX.90.AL 7.2 1250 2870 15° 4
SIF.2400.012.XX.90.AL 12.7 2500 4120 15° 4
SIF.2400.018.XX.90.AL 18.3 3750 5370 15° 4
Innen-Silo ∢60

Ø 1250

  m³ h H α n
SIF.1250.001.XX.60.AL 1.6 1000 2500 0° 3
SIF.1250.002.XX.60.AL 2.8 2000 3500 0° 3
SIF.1250.004.XX.60.AL 4.0 3000 4500 0° 3
SIF.1250.005.XX.60.AL 5.3 4000 5500 0° 3

Ø 1590

  m³ h H α n
SIF.1590.003.XX.60.AL 3.3 1250 3050 0° 3
SIF.1590.004.XX.60.AL 4.6 1875 3675 0° 3
SIF.1590.005.XX.60.AL 5.8 2500 4300 0° 3
SIF.1590.007.XX.60.AL 7.1 3125 4925 0° 3
SIF.1590.008.XX.60.AL 8.3 3750 5550 0° 3

Ø 1900

  m³ h H α n
SIF.1900.005.XX.60.AL 5.5 1500 3550 15° 3
SIF.1900.007.XX.60.AL 7.5 2250 4300 15° 3
SIF.1900.010.XX.60.AL 10.0 3000 5050 15° 3
SIF.1900.012.XX.60.AL 12.0 3750 5800 15° 3
SIF.1900.014.XX.60.AL 14.0 4500 6550 15° 3

Ø 2400

  m³ h H α n
SIF.2400.008.XX.60.AL 8.4 1250 3680 15° 4
SIF.2400.014.XX.60.AL 14.0 2500 4930 15° 4
SIF.2400.019.XX.60.AL 19.5 3750 6180 15° 4
Weitere Referenzen
Jetzt anfragen!
Außen-Silo ∢90

Ø 2400

  m³ h H
SL.037.2400.XX.90.AL 37 8200 10000
SL.050.2400.XX.90.AL 50 10700 12500
SL.055.2400.XX.90.AL 55 11950 13750
SL.061.2400.XX.90.AL 61 13200 15000
SL.072.2400.XX.90.AL 72 15700 17500

Ø 3000

  m³ h H
SL.040.3000.XX.90.AL 40 5300 7500
SL.049.3000.XX.90.AL 49 6550 8750
SL.058.3000.XX.90.AL 58 7800 10000
SL.067.3000.XX.90.AL 67 8850 11250
SL.076.3000.XX.90.AL 76 10300 12500
SL.085.3000.XX.90.AL 85 11550 13750
SL.093.3000.XX.90.AL 93 12800 15000
SL.102.3000.XX.90.AL 102 14050 16250
SL.111.3000.XX.90.AL 111 15100 17500
SL.120.3000.XX.90.AL 120 16550 18750
SL.129.3000.XX.90.AL 129 17600 20000

Ø 3500

  m³ h H
SL.054.3500.XX.90.AL 54 5100 7500
SL.066.3500.XX.90.AL 66 6350 8750
SL.078.3500.XX.90.AL 78 7600 10000
SL.090.3500.XX.90.AL 90 8850 11250
SL.102.3500.XX.90.AL 102 10100 12500
SL.114.3500.XX.90.AL 114 11350 13750
SL.126.3500.XX.90.AL 126 12600 15000
SL.138.3500.XX.90.AL 138 13850 16250
SL.150.3500.XX.90.AL 150 15100 17500
SL.162.3500.XX.90.AL 162 16350 18750
SL.174.3500.XX.90.AL 174 17600 20000
SL.186.3500.XX.90.AL 186 18850 21250
SL.198.3500.XX.90.AL 198 20100 22500
SL.210.3500.XX.90.AL 210 21350 23750
SL.222.3500.XX.90.AL 222 22600 25000
SL.245.3500.XX.90.AL 245 25100 27500

Ø 4200

  m³ h H
SL.110.4200.XX.90.AL 110 7300 10000
SL.128.4200.XX.90.AL 128 8550 11250
SL.145.4200.XX.90.AL 145 9800 12500
SL.162.4200.XX.90.AL 162 11050 13750
SL.180.4200.XX.90.AL 180 12300 15000
SL.197.4200.XX.90.AL 197 13550 16250
SL.214.4200.XX.90.AL 214 14800 17500
SL.232.4200.XX.90.AL 232 16050 18750
SL.249.4200.XX.90.AL 249 17300 20000
SL.266.4200.XX.90.AL 266 18550 21250
SL.283.4200.XX.90.AL 283 19800 22500
SL.301.4200.XX.90.AL 301 21050 23750
SL.318.4200.XX.90.AL 318 22300 25000
Außen-Silo ∢60

Ø 2400

  m³ h H
SL.024.2400.XX.60.AL 24 4800 7500
SL.030.2400.XX.60.AL 30 6050 8750
SL.035.2400.XX.60.AL 35 7300 10000
SL.041.2400.XX.60.AL 41 8550 11250
SL.047.2400.XX.60.AL 47 9800 12500
SL.052.2400.XX.60.AL 52 11050 13750
SL.058.2400.XX.60.AL 58 12300 15000
SL.064.2400.XX.60.AL 64 13550 16250
SL.069.2400.XX.60.AL 69 14800 17500

Ø 3000

  m³ h H
SL.035.3000.XX.60.AL 35 4200 7500
SL.044.3000.XX.60.AL 44 5450 8750
SL.053.3000.XX.60.AL 53 6700 10000
SL.062.3000.XX.60.AL 62 7950 11250
SL.070.3000.XX.60.AL 70 9200 12500
SL.080.3000.XX.60.AL 80 10450 13750
SL.088.3000.XX.60.AL 88 11700 15000
SL.099.3000.XX.60.AL 99 12950 16250
SL.106.3000.XX.60.AL 106 14200 17500
SL.115.3000.XX.60.AL 115 15450 18750
SL.123.3000.XX.60.AL 123 16700 20000

Ø 3500

  m³ h H
SL.045.3500.XX.60.AL 45 3750 7500
SL.057.3500.XX.60.AL 57 5000 8750
SL.069.3500.XX.60.AL 69 6250 10000
SL.081.3500.XX.60.AL 81 7500 11250
SL.093.3500.XX.60.AL 93 8750 12500
SL.105.3500.XX.60.AL 105 10000 13750
SL.117.3500.XX.60.AL 117 11250 15000
SL.129.3500.XX.60.AL 129 12500 16250
SL.141.3500.XX.60.AL 141 13750 17500
SL.153.3500.XX.60.AL 153 15000 18750
SL.165.3500.XX.60.AL 165 16250 20000
SL.177.3500.XX.60.AL 177 17500 21250
SL.189.3500.XX.60.AL 189 18750 22500
SL.201.3500.XX.60.AL 201 20000 23750
SL.213.3500.XX.60.AL 213 21250 25000

Ø 4200

  m³ h H
SL.092.4200.XX.60.AL 92 5500 10000
SL.109.4200.XX.60.AL 109 6750 11250
SL.127.4200.XX.60.AL 127 8000 12500
SL.144.4200.XX.60.AL 144 9250 13750
SL.161.4200.XX.60.AL 161 10500 15000
SL.179.4200.XX.60.AL 179 11750 16250
SL.196.4200.XX.60.AL 196 13000 17500
SL.213.4200.XX.60.AL 213 14250 18750
SL.230.4200.XX.60.AL 230 15500 20000
SL.248.4200.XX.60.AL 248 16750 21250
SL.265.4200.XX.60.AL 265 18000 22500
SL.282.4200.XX.60.AL 282 19250 23750
SL.300.4200.XX.60.AL 300 20500 25000
SL.337.4200.XX.60.AL 337 23000 27500
Weitere Referenzen
Jetzt anfragen!
Doppelkammer-Silo ∢90

Ø 3000

  m³ H
SLD.042.3000.XX.90.AL 2 x 42 15000
SLD.047.3000.XX.90.AL 2 x 47 16250
SLD.052.3000.XX.90.AL 2 x 52 17500
SLD.056.3000.XX.90.AL 2 x 56 18750
SLD.061.3000.XX.90.AL 2 x 61 20000

Ø 3500

  m³ H
SLD.044.3500.XX.90.AL 2 x 44 12500
SLD.050.3500.XX.90.AL 2 x 50 13750
SLD.056.3500.XX.90.AL 2 x 56 15000
SLD.062.3500.XX.90.AL 2 x 62 16250
SLD.068.3500.XX.90.AL 2 x 68 17500
SLD.075.3500.XX.90.AL 2 x 75 18750
SLD.080.3500.XX.90.AL 2 x 80 20000
SLD.086.3500.XX.90.AL 2 x 86 21250
SLD.092.3500.XX.90.AL 2 x 92 22500
SLD.099.3500.XX.90.AL 2 x 99 23750
SLD.105.3500.XX.90.AL 2 x 105 25000

Ø 4200

  m³ H
SLD.061.4200.XX.90.AL 2 x 61 12500
SLD.070.4200.XX.90.AL 2 x 70 13750
SLD.079.4200.XX.90.AL 2 x 79 15000
SLD.087.4200.XX.90.AL 2 x 87 16250
SLD.096.4200.XX.90.AL 2 x 96 17500
SLD.105.4200.XX.90.AL 2 x 105 18750
SLD.113.4200.XX.90.AL 2 x 113 20000
SLD.122.4200.XX.90.AL 2 x 122 21250
SLD.131.4200.XX.90.AL 2 x 131 22500
SLD.139.4200.XX.90.AL 2 x 139 23750
SLD.148.4200.XX.90.AL 2 x 148 25000
Doppelkammer-Silo ∢60

Ø 3000

  m³ H
SLD.043.3000.XX.60.AL 2 x 43 16250
SLD.047.3000.XX.60.AL 2 x 47 17500
SLD.052.3000.XX.60.AL 2 x 52 18750
SLD.056.3000.XX.60.AL 2 x 56 20000
SLD.061.3000.XX.60.AL 2 x 61 21500

Ø 3500

  m³ H
SLD.044.3500.XX.60.AL 2 x 44 13750
SLD.050.3500.XX.60.AL 2 x 50 15000
SLD.056.3500.XX.60.AL 2 x 56 16250
SLD.062.3500.XX.60.AL 2 x 62 17500
SLD.068.3500.XX.60.AL 2 x 68 18750
SLD.074.3500.XX.60.AL 2 x 74 20000
SLD.080.3500.XX.60.AL 2 x 80 21250
SLD.086.3500.XX.60.AL 2 x 86 22500
SLD.092.3500.XX.60.AL 2 x 92 23750
SLD.098.3500.XX.60.AL 2 x 98 25000

Ø 4200

  m³ H
SLD.049.4200.XX.60.AL 2 x 49 12500
SLD.058.4200.XX.60.AL 2 x 58 13750
SLD.066.4200.XX.60.AL 2 x 66 15000
SLD.075.4200.XX.60.AL 2 x 75 16250
SLD.084.4200.XX.60.AL 2 x 84 17500
SLD.092.4200.XX.60.AL 2 x 92 18750
SLD.101.4200.XX.60.AL 2 x 101 20000
SLD.110.4200.XX.60.AL 2 x 110 21250
SLD.118.4200.XX.60.AL 2 x 118 22500
SLD.127.4200.XX.60.AL 2 x 127 23750
SLD.136.4200.XX.60.AL 2 x 136 25000
Weitere Referenzen
Jetzt anfragen!

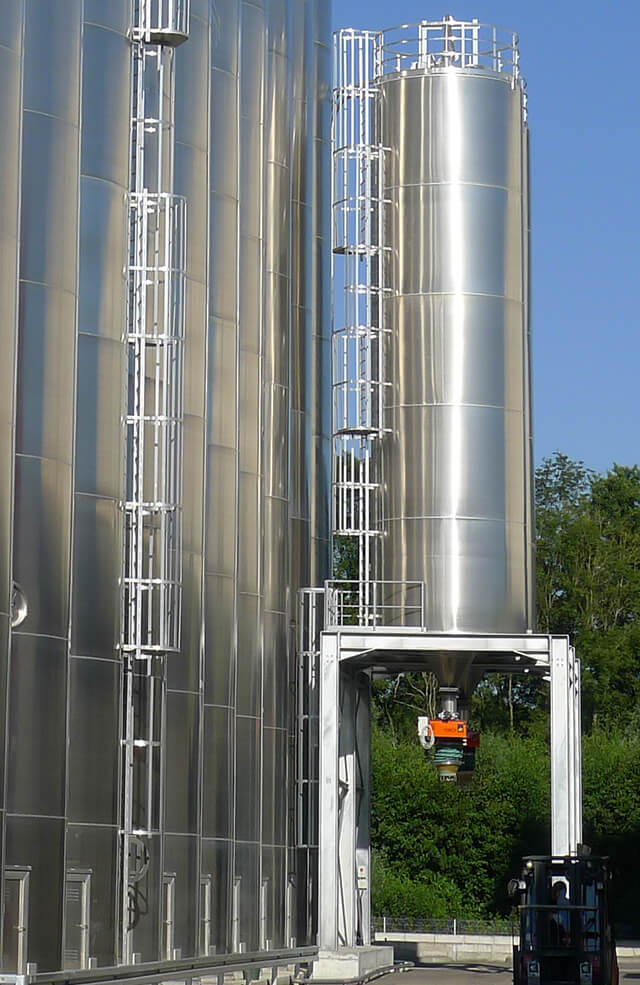

Verlade-Silo ∢60

Ø 2400

  m³ h H
SK.023.2400.XX.60.AL 23 4500 5000
SK.029.2400.XX.60.AL 29 5750 6250
SK.034.2400.XX.60.AL 34 7000 7500
SK.046.2400.XX.60.AL 46 9500 10000
SK.057.2400.XX.60.AL 57 12000 12500
SK.068.2400.XX.60.AL 68 14500 15000

Ø 3000

  m³ h H
SK.038.3000.XX.60.AL 38 4500 5000
SK.055.3000.XX.60.AL 55 7000 7500
SK.064.3000.XX.60.AL 64 8250 8750
SK.072.3000.XX.60.AL 72 9500 10000
SK.082.3000.XX.60.AL 82 10750 11250
SK.090.3000.XX.60.AL 90 12000 12500
SK.100.3000.XX.60.AL 100 13250 13750
SK.108.3000.XX.60.AL 108 14500 15000
SK.125.3000.XX.60.AL 125 17000 17500

Ø 3500

  m³ h H
SK.076.3500.XX.60.AL 76 7000 7500
SK.100.3500.XX.60.AL 100 9500 10000
SK.113.3500.XX.60.AL 113 10750 11250
SK.124.3500.XX.60.AL 124 12000 12500
SK.148.3500.XX.60.AL 148 14500 15000
SK.172.3500.XX.60.AL 172 17000 17500
SK.196.3500.XX.60.AL 196 19500 20000
SK.220.3500.XX.60.AL 220 22000 22500
SK.244.3500.XX.60.AL 244 24500 25000

Ø 4200

  m³ h H
SK.112.4200.XX.60.AL 112 7000 7500
SK.148.4200.XX.60.AL 148 9500 10000
SK.182.4200.XX.60.AL 182 12000 12500
SK.217.4200.XX.60.AL 217 14500 15000
SK.252.4200.XX.60.AL 252 17000 17500
SK.286.4200.XX.60.AL 286 19500 20000
SK.321.4200.XX.60.AL 321 22000 22500
SK.355.4200.XX.60.AL 355 24500 25000
