DISCHARGE

The discharge of free-flowing bulk materials is no problem when the mass flow is correctly dimensioned. This includes most of the plastic granules, for which we offer suction boxes with a different number of suction points and suitable for the industry-standard material line diameters of 38–76.1 mm for suction from silos.

When bulk materials with limited or poor flowability are stored, discharge units are required. We recommend sending bulk material samples with your very first enquiry in order for us to assess the flowability of the material. In a second step, it may be necessary to ascertain the bulk solid characteristics in the lab. Sound knowledge of the bulk solid characteristics enables us to offer you the appropriate discharge unit. However, it must also be taken into account during the design of the silo that the flowability may depend on the resting time (time-hardening), the temperature and the humidity in the silo.

Suction boxes

Rotary bin discharger

Bin activator

Loader

“Granule” suction box
  • No suction probes required for suction
  • Modular design – combinable
  • Conveying air regulation integrated in suction pipe
  • Product-carrying parts made of stainless steel
  • 1 ½” screw socket for empty indicator on the rear
  • Inspection and cleaning opening on both sides
  • Various options are available
Silo connection ASK.SL.A
  Ø
ASK.SL.A.DN150 DN150
ASK.SL.A.DN200 DN200
ASK.SL.A.DN250 DN250
Suction box ASK.SL.B
  Size
ASK.SL.B.01 1-way
ASK.SL.B.02 2-way
ASK.SL.B.04 4-way
ASK.SL.B.06 6-way
ASK.SL.B.08 8-way
ASK.SL.B.10 10-way
ASK.SL.B.16 16-way
Suction pipe ASK.SL.C
  Ø
ASK.SL.C.038.SIEB 38
ASK.SL.C.040.SIEB 40
ASK.SL.C.045.SIEB 44.5
ASK.SL.C.050.SIEB 50
ASK.SL.C.054.SIEB 54
ASK.SL.C.060.SIEB 60.3
ASK.SL.C.065.SIEB 65
ASK.SL.C.070.SIEB 70
ASK.SL.C.076.SIEB 76.1
ASK.SL.C.084.SIEB 84

Options

Filter for suction point
  Ø
ASK.SL.Z.FILT.045 40/44.5
ASK.SL.Z.FILT.050 50
ASK.SL.Z.FILT.060 60.3
Storz-A suction coupling for silo vehicle

ASK.SL.Z.STORZ.A
Sample taking


ASK.SL.Z.PROBE
Adapter plate


ASK.SL.Z.ADAPTER

“Powder” suction box
  • Closed housing with seals
  • Bulk material loading adjustable via suction probe
  • Product-carrying parts made of stainless steel
  • 1½” screw socket for empty indicator
  • Sight glass on side of housing
  • Suction filter at suction point
Suction box
  Size
ASK.SL.B.01.P 1-way
ASK.SL.B.02.P 2-way
ASK.SL.B.04.P 4-way
Silo connection
  Ø
ASK.SL.A.DN200 DN200
ASK.SL.A.DN250 DN250
Suction pipe (for ASK)
  Ø
ASK.SL.C.050.P 50
ASK.SL.C.060.P.01 60.3
ASK.SL.C.065.P 65
ASK.SL.C.070.P.01 70
ASK.SL.C.076.P.01 76.1
ASK.SL.C.084.P 84

Suction box with angel hair grid
  • Conveying air regulation integrated in suction pipe
  • Product-carrying parts made of stainless steel
  • 1 ½” screw socket for empty indicator on the rear
  • Inspection and cleaning opening on both sides
  • Drawer with U-lock and grid sieve for angel hair
Silo connection ASK.SL.A
  Ø
ASK.SL.A.DN150 DN150
ASK.SL.A.DN200 DN200
ASK.SL.A.DN250 DN250
Suction box ASK.SL.B
  Size
ASK.SL.B.04.AH 4-way
ASK.SL.B.06.AH 6-way
ASK.SL.B.10.AH 10-way
Suction pipe ASK.SL.C
  Ø
ASK.SL.C.038.SIEB 38
ASK.SL.C.040.SIEB 40
ASK.SL.C.045.SIEB 44.5
ASK.SL.C.050.SIEB 50
ASK.SL.C.054.SIEB 54
ASK.SL.C.060.SIEB 60.3
ASK.SL.C.065.SIEB 65
ASK.SL.C.070.SIEB 70
ASK.SL.C.076.SIEB 76.1
ASK.SL.C.084.SIEB 84

Options

Filter for suction point
  Ø
ASK.SL.Z.FILT.045 40/44.5
ASK.SL.Z.FILT.050 50
ASK.SL.Z.FILT.060 60.3
Storz-A suction coupling for silo vehicle

ASK.SL.Z.STORZ.A
Sample taking


ASK.SL.Z.PROBE
Adapter plate


ASK.SL.Z.ADAPTER
Rotary bin discharger

The rotary bin discharger was designed for the discharge of PET flakes. The stirring movement pushes the PET flakes over the discharge opening where they are removed. The drive motor is equipped with a frequency converter on which the speed of the rotary bin discharger can be changed, if necessary.

  • Inlet diameter: 1200 mm
  • Outlet diameter: DN 250 (drilled according to PN 10)
  • Housing material: Stainless steel
  • Agitator arm material: Stainless steel
  • Motor output: 3,0 kW
  • Power supply: 400 V (50 Hz)

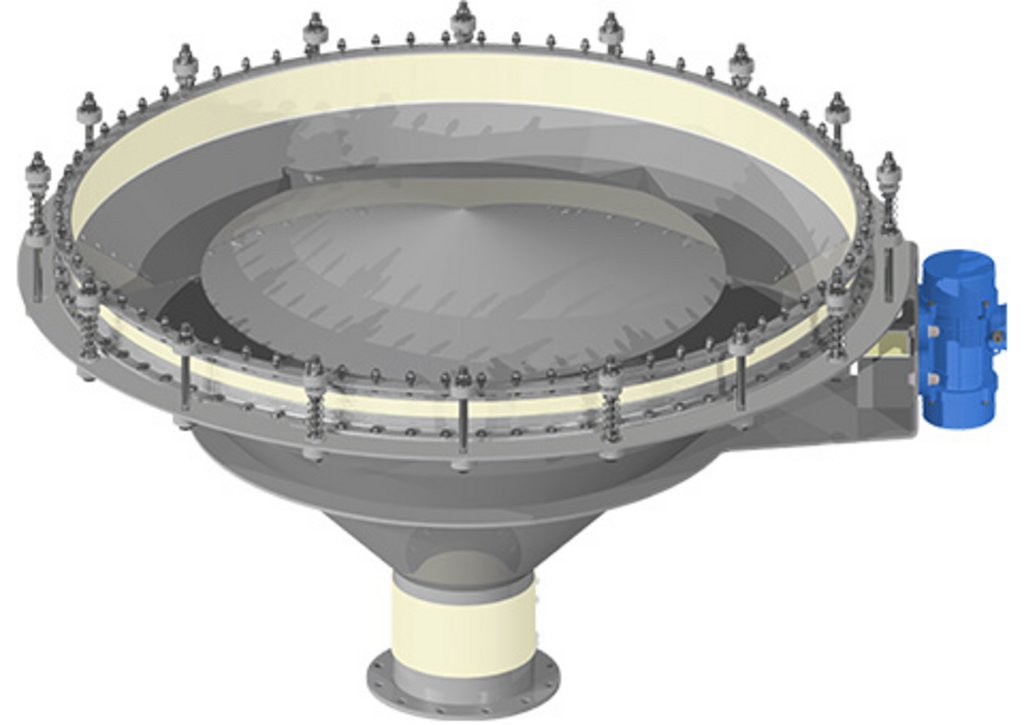

Bin activator

Bin activators are used when bulk materials with limited or poor flowability are discharged reliably from silos. One or two unbalance motors cause horizontal vibrations in the bin activator, which are transmitted to the bulk material column. This causes mass flow in the bulk material column. A ring-shaped gap is created around the deflector in the bin activator, which allows the bulk material to sink evenly towards the outlet.

  • Bin activator made of stainless steel
  • Main sleeve made of PES fabric (PUR coated)
  • Power supply 400 V (50 Hz)
  • Flexible collar on the outlet
  • Outlet with flange DN200, DN250 or DN300
  • Optionally with ATEX certificate
  • Maximum bulk density 10 kN/m³
Loader

Selecting the right loader also depends on how often you load a silo vehicle.

Our telescopic loading pipe was designed for the loading of plastic granules. It is operated manually. The telescopic loading bellows can also be used for powdery bulk materials. An aspiration connection is also provided. It is conveniently operated via an electrically motorised control bottle.

Telescopic loading pipe (manually)
  • For loading of plastic granules in silo vehicles
  • Height adjustable by 680 mm
  • Connection flange DN 200, drilled according to PN10
  • Height adjustable by 680 mm
  • Telescopic tubes made of stainless steel
  H1 H2 H3
VERLADER.01 1900 1220 680
Telescopic loading bellows (electric motor)
  • For loading of plastic granules and powder into silo vehicles
  • Inlet Ø 300 mm
  • Height adjustable by 1290 mm
  • Required voltage 400 V (50 Hz)
  • Product-carrying parts made of stainless steel
  • Electro-motorised stroke adjustment
  • On outlet with distributor cone as locking cone with MAX level indicator
  • Switch cabinet with manual control bottle for “loader up/down” and “slide valve open/close”
  H1 H2 H3
VERLADER.03 2670 1380 1290
