BLOWER UNIT

Our blower units generate the necessary conveying air in pressure conveying systems. All blower units were tested in our test plant for different conveying distances and line pipe cross sections.

The conveying air is sucked in filtered and compression is provided oil-free. This avoids contamination of the bulk material. Each blower is equipped for the connection of one or two fan bypass valves.

A pressure sensor detects the counter pressure at the blower outlet. This means that pressure-controlled conveyance is possible with our standardised controls.

Blower unit

Lorry Discharge

Blower unit (pressure)
  • Side channel blower with suction strainer, silencer and manometer
  • Blower adapter with pressure sensor for pressure-controlled conveyance
  • Connection piece for blower bypass valve
  • 2.5 m hose with hose clamps
Make a request!

Technical details

  Motor power ↯ Sound level Supply line dia.
G.D.SK.076.075 7.5 kW 400/690 V (50 Hz) 74 dBA (50 Hz) Ø76.1
G.D.SK.108.110 11.0 kW 400/690 V (50 Hz) 74 dBA (50 Hz) Ø108
G.D.SK.108.185 18.5 kW 400/690 V (50 Hz) 74 dBA (50 Hz) Ø108
Blower unit (pressure) with soundproof hood
  • Rotary piston blower with suction filter, pressure gauge, non-return valve, manometer and oil filling
  • Blower adapter with pressure sensor for pressure-controlled conveyance
  • Connection piece for blower bypass valve
  • 2.5 m hose with hose clamps
  • Coating: RAL5001 / RAL7047

Technical details

  Motor power ↯ Sound level Supply line dia.
G.D.WZ.108.220 22.0 kW 3 x 400 V (50 Hz) 74 dBA (50 Hz) Ø108
G.D.WZ.108.370 37.0 kW 3 x 400 V (50 Hz) 75 dBA (50 Hz) Ø108
G.D.WZ.129.450 45.0 kW 3 x 400 V (50 Hz) 76 dBA (50 Hz) Ø129

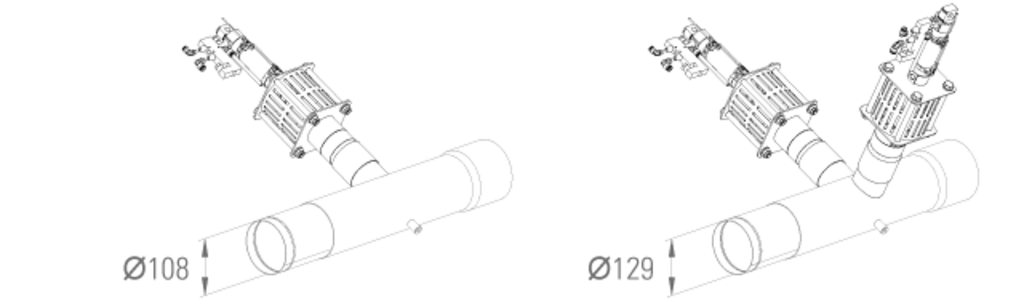

Blower bypass valve for pneumatic pressure conveying
  • For pressure conveyor systems with diverter control
  • For connection to the blower outlet
  • Including pneumatic parts, magnetic valve and two limit switches for position monitoring
  • For pipes up to Ø 108 mm; two pieces are required for Ø 129 mm
  ↯ Compressed air supply Ambient temperature
G.D.BYPASS.108 24 V DC 1/8”; 6 bar –15/+40 °C
Blower unit

The blower unit supplies the necessary conveying air for emptying silo vehicles or SeaBulk containers. Switching between these operating modes takes place using a “silo truck / sea bulk” switch.
For emptying SeaBulk containers, we also offer a mobile rotary valve station.

Make a request!
Functions:
  • Filling pressure monitoring (max. 0.8 bar); warning messages when exceeded
  • Automatic shutdown in critical pressure range
  • Key switch (system on/off); emergency stop (emergency shutdown of the system)
  • Start/stop push-button combination (switching the blower on and off)
  • Horn / flashing light combination (warning signal when pressure is exceeded)
  • Option: Control of a mobile rotary valve station for emptying SeaBulk containers
Installation conditions:
  • The system is only suitable for indoor installation in ventilated rooms.
  • The max. distance between the blower unit and the filling point is 20 m.
  • The max. length of the filling pipe at the silo is 30 m (of which 20 m vertical).

Blower unit
(including control)

  • Blower unit with soundproof hood for generation of conveying air; suction filter, pressure gauge, non-return valve, manometer
  • Switch cabinet with PLC control and frequency converter as well as a separate control unit for installation directly at the filling point
  • Power supply: 400 V (50 Hz)
  • Rated current: 89 A
  • Maximum pre-fuse: 150 A
  Electr. power consumption
G.D.TRUCK.SEABULK.10 48 kW

Blower unit
(including control + cooler)

  • Blower unit with soundproof hood for generation of conveying air; suction filter, pressure gauge, non-return valve, manometer
  • Air cooler at the blower outlet

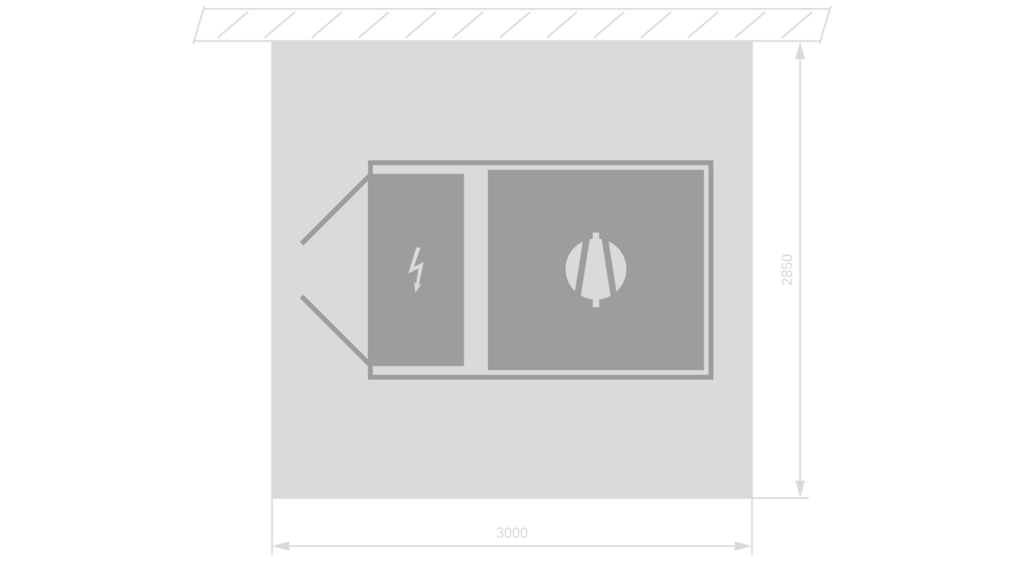

  • Switch cabinet with PLC control and frequency converter as well as a separate control unit for installation directly at the filling point
  • Power supply: 400 V (50 Hz)
  • Rated current: 90 A
  • Maximum pre-fuse: 150 A
  Electr. power consumption
G.D.TRUCK.SEABULK.20 49 kW

Blower unit
(incl. control + cooler + dryer)

  • Blower unit with soundproof hood for generation of conveying air; suction filter, pressure gauge, non-return valve, manometer
  • Dry air generator at the suction point of the blower
  • Air cooler at the blower outlet

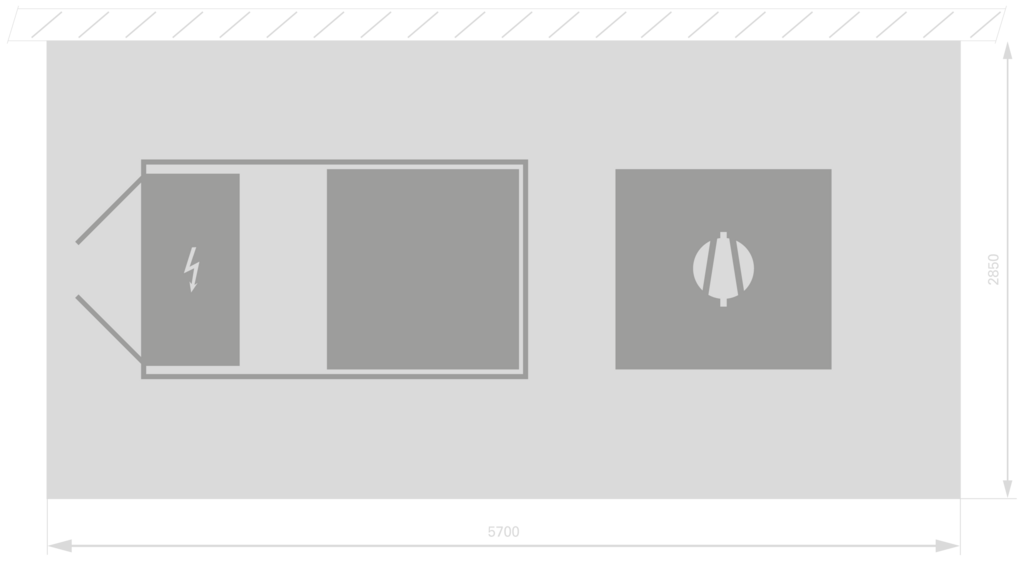

  • Switch cabinet with PLC control and frequency converter as well as a separate control unit for installation directly at the filling point
  • Power supply: 400 V (50 Hz)
  • Rated current: 93.2 A
  • Maximum pre-fuse: 150 A
  Electr. power consumption
G.D.TRUCK.SEABULK.30 57 kW
Rotary valve station
  • Frame with runners for forklift transport
  • Weather-proof housing with inspection opening
  • Rotary valve with drive (frequency converter) and leakage air connection
  • Bulk material deflector at the inlet of the rotary valve
  • Inlet pipe for connecting the Seabulk outlet (with sealing cap)
  • Pipe adapter with connections for air and material hose (Storz A coupling with cap)
  • Connector (Harting) for signal and power
  • Power supply: 400 V (50 Hz)
  ≈ to/h (0.6 to/m³) Output
ZRS.SEABULK.250.AL.01 12 1.1 kW
ZRS.SEABULK.300.AL.01 20 1.5 kW
