Our mobile positive conveying units are standardised pneumatic pressure conveying systems that are delivered ready for use. They are used for filling silos (storage silo, mixing silos, loading silos and flexible silos). All components are housed on a frame that can be transported with a forklift.

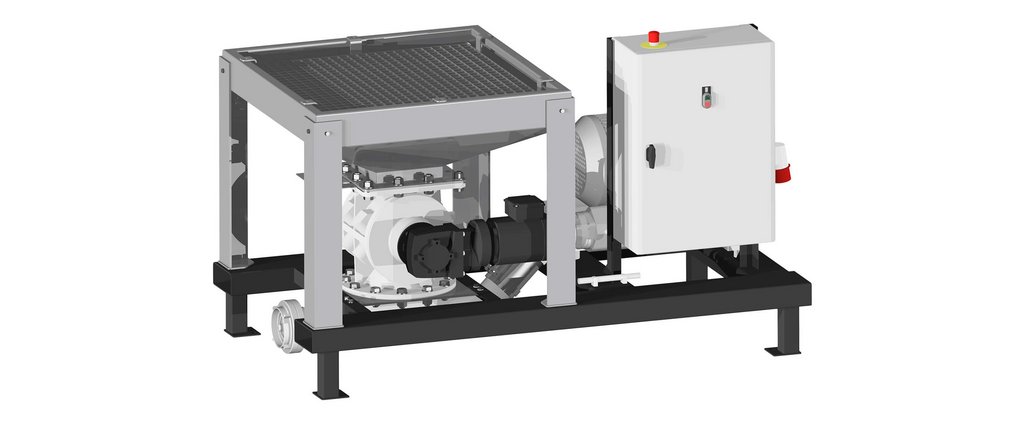

This mobile positive conveying unit is used for the manual emptying of granules from 25 kg bags and for filling silos. With a slight modification, this mobile positive conveying unit can also be used with regrind.

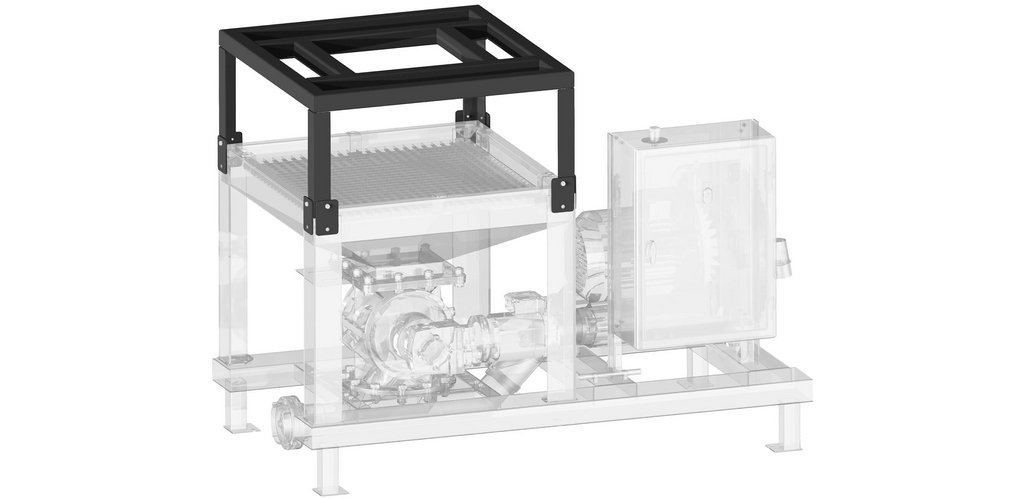

Big bags can also be emptied with the optional steel stacking frame (RAL9005). The components are all housed on a steel frame that can be transported by forklift.
L | B | H | Ø | Conveying capacity at 0.6 t/m³ | Conveying distance | Number of bends | ||
---|---|---|---|---|---|---|---|---|
DFST.SK.100.110.400.50.25KG | 2100 | 1000 | 1200 | DN100 | ≈ 5−6 t/h | 400 V, 50 Hz, 32 A | 25 m, of which 15 m vertical | 1 x 90°, 1 x 180° |
DFST.SK.100.185.400.50.25KG | 2100 | 1000 | 1500 | DN100 | ≈ 5−6 t/h | 400 V, 50 Hz, 63 A | 50 m, of which 20 m vertical | 3 x 90°, 1 x 180° |

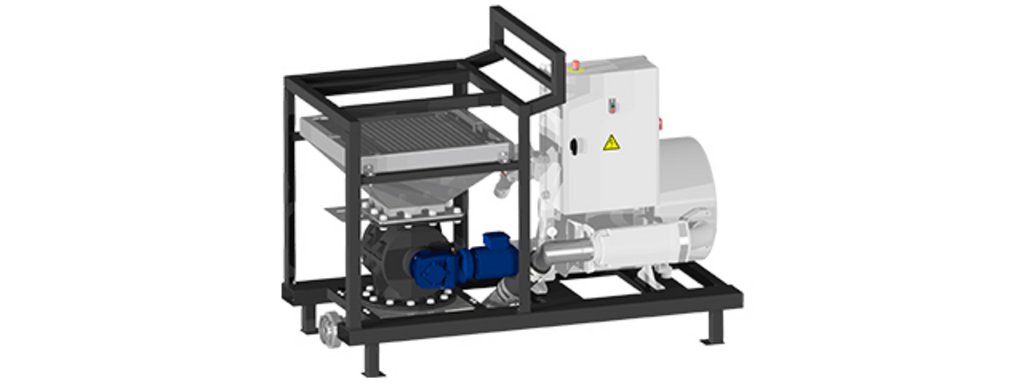

This mobile positive conveying unit is used for the manual emptying of granules or regrind from big bags and for filling silos. The big bag frame can be removed so that 25 kg sacks can be emptied whenever needed.
The components are all housed on a steel frame that can be transported by forklift.
