COUPLINGS

Flexible hose pipes must be reliably connected to pipelines. For this we offer three coupling systems that have become established as reliable technology in the bulk goods industry. The couplings are precisely matched and compatible with our entire pipe system.

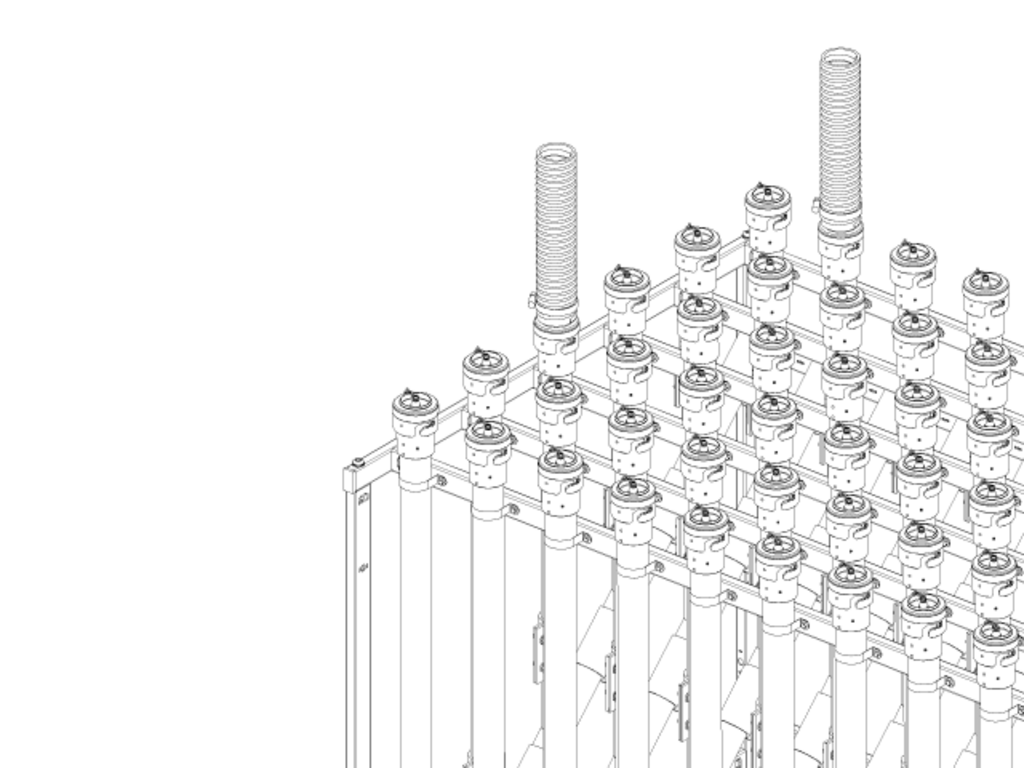

For use on coupling tables (distribution station, diverter table) we developed the TWIST system. These couplings are particularly user-friendly and can be offered with RFID technology.

Make a request!

TWIST

Camlock

Storz

TWIST couplings

Benefits

  • One-hand operation (1/8 turn when opening)
  • Low effort required
  • Without internal offset
  • Product-carrying parts made of stainless steel
  • Can be retrofitted on existing coupling tables
  • Durable construction for rough operating environments
Pipe connection
  • Made of aluminium
  • Seal inserted in the ring groove
  Ø
KP.TWIST.10.40 40
KP.TWIST.10.50 50
KP.TWIST.10.60 60.3
KP.TWIST.10.70 70
KP.TWIST.10.76 76.1
Cap with chain
  • Plastic cap (black)
  • Chain made of galvanized steel
  Ø
KP.TWIST.20.40 40
KP.TWIST.20.50 50
KP.TWIST.20.60 60.3
KP.TWIST.20.70 70
KP.TWIST.20.76 76.1
Hose connection
  • Plastic closure (black)
  • Pipe made of stainless steel
  Ø
KP.TWIST.30.40 40
KP.TWIST.30.50 50
KP.TWIST.30.54 54
KP.TWIST.30.60 60.3
KP.TWIST.30.70 70
KP.TWIST.30.76 76.1
Plug
  • Made of aluminium
  • Chain made of galvanized steel
  Ø
KP.TWIST.40.40 40
KP.TWIST.40.50 50
KP.TWIST.40.60 60.3
KP.TWIST.40.70 70
KP.TWIST.40.76 76.1

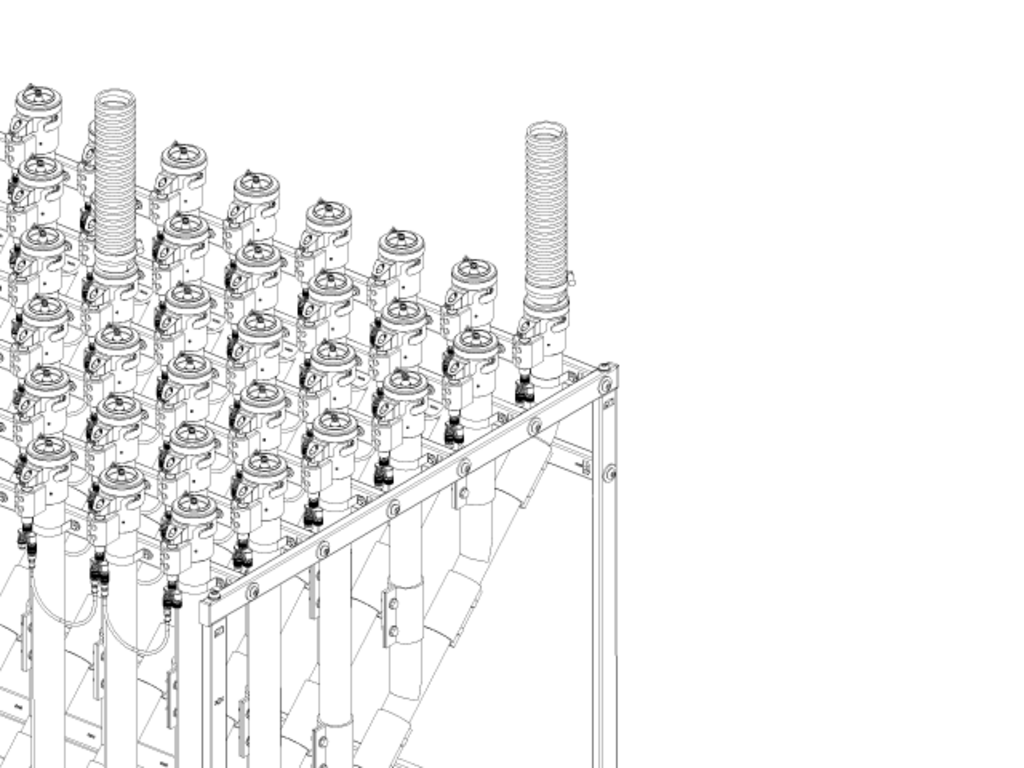

TWIST coded “RFID”

Benefits

  • Easy to retrofit with RFID sensor
  • Exact positioning of RFID sensor head and RFID tag
  • Quick and easy assembly
  • Space-saving arrangement in coupling tables
  • Good value for money
RFID sensor with holder
  • Plastic holder (black)
  • Stainless steel / plastic sensor
  • With T-branch module and 0.6 m cable
  Ø
KP.TWIST.60.RFID.SENSOR.40 40
KP.TWIST.60.RFID.SENSOR.50 50
KP.TWIST.60.RFID.SENSOR.60 60.3
KP.TWIST.60.RFID.SENSOR.70 70
KP.TWIST.60.RFID.SENSOR.76 76.1
RFID tag with holder
  • Plastic holder (black)
  • Plastic tag (black)

  Ø
KP.TWIST.60.RFID.TAG.40 40
KP.TWIST.60.RFID.TAG.50 50
KP.TWIST.60.RFID.TAG.60 60.3
KP.TWIST.60.RFID.TAG.70 70
KP.TWIST.60.RFID.TAG.76 76.1
RFID interface “Profinet”
  • SIEMENS CPU with Profinet interface
  • Access via S7 put/get functions
  • Equipment optionally for 72, 144 or 216 sensors
  • including cable
  • Power supply: 230 V (50 Hz)
  • L x W x H: 600 x 400 x 250
  • with connection between the RFID interface and the coupling table
  Number of sensors
CTRL.KB.PROFINET.072 72
CTRL.KB.PROFINET.144 144
CTRL.KB.PROFINET.216 216
“RFID” protective cover
  • Made of stainless steel
  • For 2 rows
  • For coupling tables type B4 - B6 or M4 - M6
Distributor spacing 100
  Outlets
KB.G.Z.RFID.COVER.100.4 4
KB.G.Z.RFID.COVER.100.5 5
KB.G.Z.RFID.COVER.100.6 6
Distributor spacing 150
  Outlets
KB.G.Z.RFID.COVER.150.4 4
KB.G.Z.RFID.COVER.150.5 5
KB.G.Z.RFID.COVER.150.6 6
Camlock couplings
Camlock male part “for pipe”
  • With seal

Sizes

  Ø
KP.CAM.A.01.40.AL 40
KP.CAM.A.01.45.AL 44.5
KP.CAM.A.01.50.AL 50
KP.CAM.A.01.60.AL 60.3
KP.CAM.A.01.65.AL 65
KP.CAM.A.01.76.AL 76.1
Camlock cap
  • With seal
  • With fastening chain

Sizes

  Ø
KP.CAM.DC.01.40.AL 40
KP.CAM.DC.01.45.50.AL 44.5
KP.CAM.DC.01.45.50.AL 50
KP.CAM.DC.01.60.65.AL 60.3
KP.CAM.DC.01.60.65.AL 65
KP.CAM.DC.01.76.AL 76.1
Camlock plugs
  • With fastening chain

Sizes

  Ø
KP.CAM.DP.01.40.AL 40
KP.CAM.DP.01.45.50.AL 44.5
KP.CAM.DP.01.45.50.AL 50
KP.CAM.DP.01.60.65.AL 60.3
KP.CAM.DP.01.60.65.AL 65
KP.CAM.DP.01.76.AL 76.1
Camlock female part “for pipe”
  • With seal

Sizes

  Ø
KP.CAM.D.01.40.AL 40
KP.CAM.D.01.50.AL 50
KP.CAM.D.01.60.AL 60.3
KP.CAM.D.01.76.AL 76.1
Y-piece “with camlock coupling”

Sizes

  Ø Material Y
FS.Y.040.15.040.15.CR.CAM 40 Stainless steel
FS.Y.050.15.050.15.CR.CAM 50 Stainless steel
FS.Y.050.15.050.15.CR.H.CAM 50 Stainless steel hardened
FS.Y.060.15.060.15.CR.CAM 60.3 Stainless steel
Camlock female part “for hose”
  • With seal
  • Product-carrying parts made of stainless steel

Sizes

  Ø
KP.CAM.C.02.38.CR 38
KP.CAM.C.02.40.CR 40
KP.CAM.C.02.45.CR 44.5
KP.CAM.C.02.50.CR 50
KP.CAM.C.02.54.CR 54
KP.CAM.C.02.60.CR 60.3
KP.CAM.C.02.65.CR 65
KP.CAM.C.02.70.CR 70
KP.CAM.C.02.76.CR 76.1
Camlock male part “for hose”
  • With seal

Sizes

  Ø
KP.CAM.E.01.40.AL 40
KP.CAM.E.01.45.AL 44.5
KP.CAM.E.01.50.AL 50
KP.CAM.E.01.60.AL 60.3
KP.CAM.E.01.65.AL 65
KP.CAM.E.01.70.AL 70
KP.CAM.E.01.76.AL 76.1
Storz cap
  • With fastening chain

Dimensions

  Size ”Toggles turned off” lockable
KP.STORZ.BLIND.A.01.AL A (133) no no
KP.STORZ.BLIND.A.02.AL A (133) yes no
KP.STORZ.BLIND.A.03.AL A (133) no yes
KP.STORZ.BLIND.B.01.AL B (89) no no
KP.STORZ.BLIND.B.02.AL B (89) yes no
KP.STORZ.BLIND.B.03.AL B (89) no yes
KP.STORZ.BLIND.C.01.AL C (66) no no
KP.STORZ.BLIND.C.03.AL C (66) no yes
Storz hose coupling
  • With seal

Dimensions

  for hose dia. Size
KP.STORZ.SCH.A.090.01.AL 90 A (133)
KP.STORZ.SCH.A.102.01.AL 102 A (133)
KP.STORZ.SCH.B.076.01.AL 76 B (89)
KP.STORZ.SCH.B.080.01.AL 80 B (89)
KP.STORZ.SCH.C.050.01.AL 50 C (66)
Storz coupling
  • With cap and fastening chain
  • Limit switch (10 m cable)

Dimensions

  Thread Size
KP.STORZ.OROHR.A.40.02.AL 4" A (133)
KP.STORZ.OROHR.B.30.02.AL 3" B (89)
Storz coupling with pipe
  • With cap and fastening chain
  • Pipe made of stainless steel (l = 500 mm)

Dimensions

  Pipe Ø Size
KP.STORZ.MROHR.B.30.076.01.AL 76.1 B (89)
KP.STORZ.MROHR.A.40.089.01.AL 88.9 A (133)
KP.STORZ.MROHR.B.30.089.01.AL 88.9 B (89)
KP.STORZ.MROHR.A.40.102.01.AL 101.6 A (133)
KP.STORZ.MROHR.A.40.108.01.AL 108 A (133)
KP.STORZ.MROHR.A.40.114.01.AL 114.3 A (133)
Storz coupling with pipe
  • With cap and fastening chain
  • Pipe made of stainless steel (l = 500 mm)
  • Limit switch (10 m cable)

Dimensions

  Pipe Ø Size
KP.STORZ.MROHR.A.40.089.02.AL 88.9 A (133)
KP.STORZ.MROHR.B.30.089.02.AL 88.9 B (89)
KP.STORZ.MROHR.A.40.102.02.AL 101.6 A (133)
KP.STORZ.MROHR.A.40.108.02.AL 108 A (133)
Storz couplings
Storz fixed part
  • With seal

Dimensions

  Thread Size Rotatable
KP.STORZ.FEST.A.40.01.AL 4" A (133) no
KP.STORZ.FEST.A.40.06.AL 4" A (133) yes
KP.STORZ.FEST.B.20.01.AL 2" B (89) no
KP.STORZ.FEST.B.30.01.AL 3" B (89) no
KP.STORZ.FEST.C.20.01.AL 2" C (66) no
KP.STORZ.FEST.C.25.01.AL 2,5" C (66) no
Storz fixed part with limit switch
  • With seal
  • 10 m cable

Dimensions

  Thread Size
KP.STORZ.FEST.A.40.02.AL 4" A (133)
KP.STORZ.FEST.B.30.02.AL 3" B (89)
