BIGBAG EMPTYING UNIT for granules − ∢90° − 70 l / 60 l

This big bag emptying station is only suitable for free-flowing granules. The big bag can be conveniently attached to a forklift or an electric crane.

At 60 or 70 litres, the volume of the container is very small in order to keep the overall height as low as possible. The 70-l container features a suction system on the side (vacuum conveying). The 60-l container is emptied from the bottom.

The large ground clearance is intended for the connection of a suction box or a rotary valve. The discharge capacity of the rotary valve can be approx. 3−6 tonnes/h.

70 l – side suction

60 l − outlet DN200/DN250

BigBag emptying unit 70 l
Make a request!
  • Stable steel construction (RAL9005 jet black)
  • Optionally with lifting rack (RAL1003 signal yellow) for forklift operation or electric crane (RAL5009 azure blue) with lifting cross (RAL1003 signal yellow); max. load 2000 kg, hook path 5 m
  • Inlet collar Ø 450 mm
  • Openings closed with a plate:
    2x for the attachment of guide pipes for suction probes
  • Outlet with swivelling arm for total emptying

For forklift operation

  H1 H2 H3 Big bag height h Material container
BB.CE.0070.90.000.002.08.S15.CR 3500 2700 800 1500 80 Stainless steel
BB.CE.0070.90.000.002.08.S20.CR 4000 3200 800 2000 80 Stainless steel

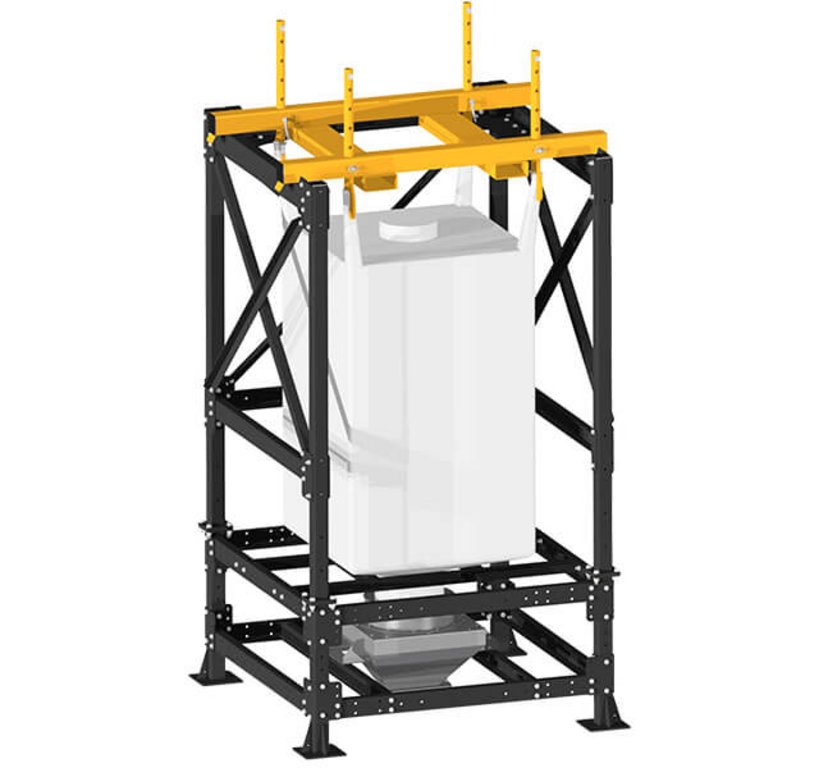

BigBag-Entleerung 70 l für Staplerbetrieb

With electric crane

  H1 H2 H3 Big bag height h Material container
BB.CE.0070.90.000.002.08.K10.CR 3500 2700 800 1000 80 Stainless steel
BB.CE.0070.90.000.002.08.K15.CR 4000 3200 800 1500 80 Stainless steel
BB.CE.0070.90.000.002.08.K20.CR 4500 3700 800 2000 80 Stainless steel

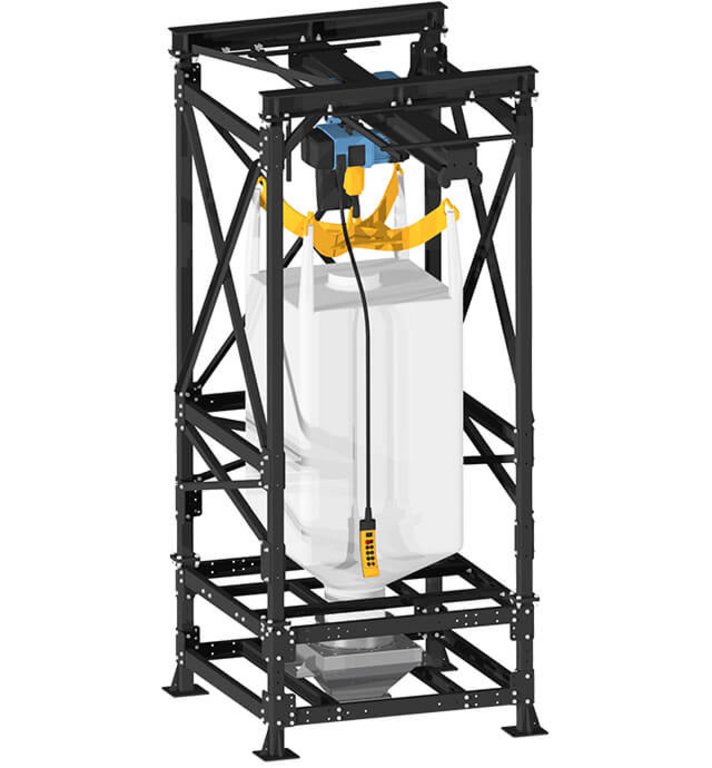

BigBag-Entleerung 70 l mit Kettenzug
Guide pipe for suction probe
  • Made of stainless steel
    Øi
BB.CE.FSGL.90.089.CR Guide pipe 82
BB.CE.FSGL.DECKEL.089.CR Cover with wire rope ---
BB.CE.FSGL.90.108.CR Guide pipe 102
BB.CE.FSGL.DECKEL.108.CR Cover with wire rope ---
View of rear
guide pipe

               guide pipe       cover

BigBag emptying unit 60 l
Make a request!
  • Stable steel construction (RAL9005 jet black)
  • Optionally with lifting rack (RAL1003 signal yellow) for forklift operation or electric crane (RAL5009 azure blue) with lifting cross (RAL1003 signal yellow); max. load 2000 kg, hook path 5 m
  • Inlet collar Ø 450 mm
  • Process connection:
    1x Ø 55 mm (for the connection of a screw socket for detector)
  • Outlet DN200 or DN250 (bore according to PN10)

For forklift operation

  H1 H2 H3 Big bag height h Material container
BB.CE.0060.90.200.000.14.S15.CR 4100 2700 1400 1500 675 Stainless steel
BB.CE.0060.90.200.000.14.S20.CR 4600 3200 1400 2000 675 Stainless steel
BB.CE.0060.90.250.000.14.S15.CR 4100 2700 1400 1500 720 Stainless steel
BB.CE.0060.90.250.000.14.S20.CR 4600 3200 1400 2000 720 Stainless steel

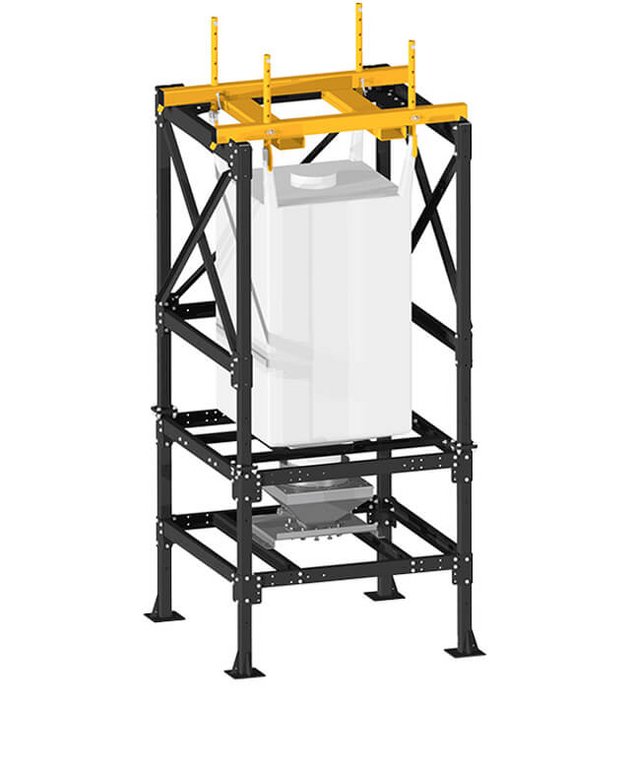

BigBag-Entleerung 60 l für Staplerbetrieb

With electric crane

  H1 H2 H3 Big bag height h Material container
BB.CE.0060.90.200.000.14.K10.CR 4100 2700 1400 1000 675 Stainless steel
BB.CE.0060.90.200.000.14.K15.CR 4600 3200 1400 1500 675 Stainless steel
BB.CE.0060.90.200.000.14.K20.CR 5100 3700 1400 2000 675 Stainless steel
BB.CE.0060.90.250.000.14.K10.CR 4100 2700 1400 1000 720 Stainless steel
BB.CE.0060.90.250.000.14.K15.CR 4600 3200 1400 1500 720 Stainless steel
BB.CE.0060.90.250.000.14.K20.CR 5100 3700 1400 2000 720 Stainless steel

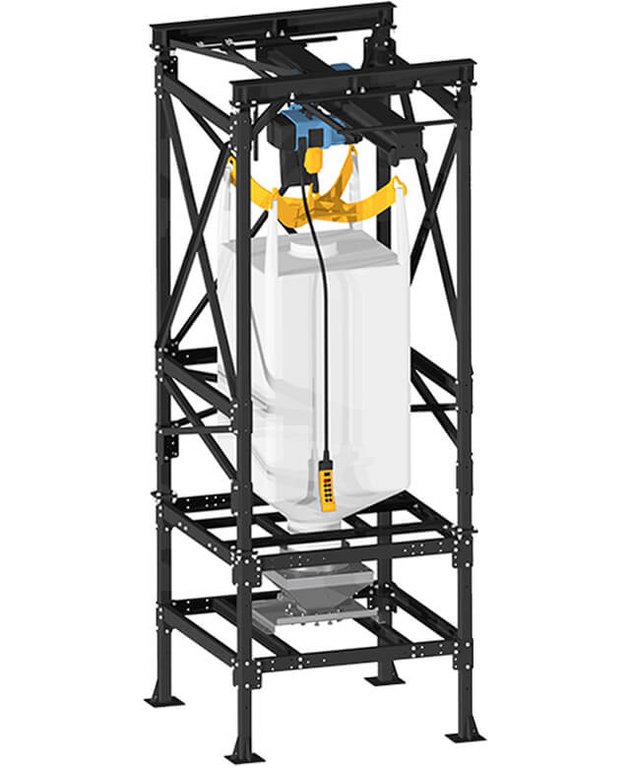

BigBag-Entleerung 60 l mit Kettenzug

Suitable attachments

Suction box 1-way
ASK.SL.B.01 + ASK.SL.A.DN250
Suction box 2-way
ASK.SL.B.02 + ASK.SL.A.DN250
Suction box 4-way
ASK.SL.B.04 + ASK.SL.A.DN250
Reducer DN250/200
BB.Z.RED.250.200.CR
Rotary valve
ZRS.01.200.01.FU.AL Ø200
ZRS.01.250.01.FU.AL Ø250
