BIGBAG EMPTYING UNIT for regrind − ∢60° − 1000 l

This big bag emptying station is suitable for free-flowing regrind and granules. The big bag can be conveniently attached to an electric crane.

The containers of the two big bag emptying stations differ at the outlet of the funnel. One funnel is provided for lateral suction and has an angular outlet. The other funnel is round at the outlet and is suitable for the connection of a rotary valve. The discharge capacity of the rotary valve can be approx. 3−6 tonnes/h.

The 1000-l container is generously dimensioned. The containers are available in aluminium or stainless steel.

1000 l – side suction

1000 l outlet DN200

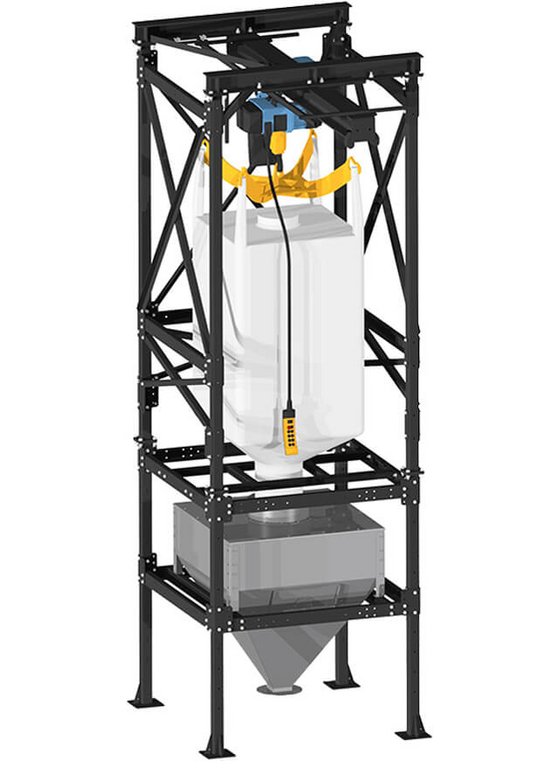

BigBag emptying unit 1000 l
  • Stable steel construction (RAL9005 jet black)
  • Electric crane (RAL5009 azure blue) with lifting cross (RAL1003 signal yellow); Max. load capacity 2000 kg, hook path 5 m
  • Inlet collar Ø 450 mm
  • Openings closed with a plate:
    3x for the attachment of guide pipes for suction probes
    2x Ø 55 mm (for connection of a screw socket for detectors) 1x Ø 100 mm (for connection of a filter)
  • Inspection hole (450 x 300 mm) with sight glass
  • Outlet DN200 (bore according to PN10)
Guide pipe for suction probe
  • Made of stainless steel
    Øi
BB.CE.FSGL.90.089.CR Guide pipe 82
BB.CE.FSGL.DECKEL.089.CR Cover with wire rope ---
BB.CE.FSGL.90.108.CR Guide pipe 102
BB.CE.FSGL.DECKEL.108.CR Cover with wire rope ---
View of rear

               guide pipe       cover


Suitable attachments

Suction box 1-way
ASK.SL.B.01 + ASK.SL.A.200
Suction box 2-way
ASK.SL.B.02 + ASK.SL.A.200
Suction box 4-way
ASK.SL.B.04 + ASK.SL.A.200
Swivelling arm
CE.Z.SCHWENKSCH.200.CR

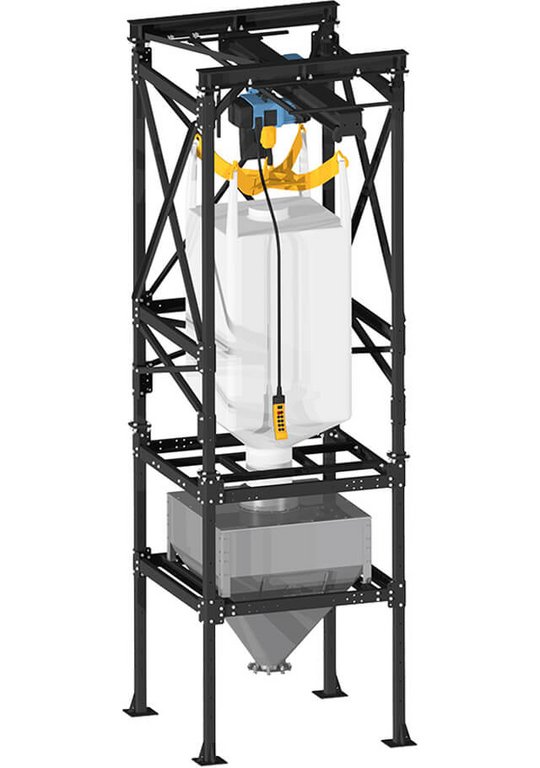

BigBag emptying unit 1000 l
  • Stable steel construction (RAL9005 jet black)
  • Electric crane (RAL5009 azure blue) with lifting cross (RAL1003 signal yellow); Max. load capacity 2000 kg, hook path 5 m
  • Inlet collar Ø 450 mm
  • Openings closed with a plate:
    2x Ø 55 mm (for connection of a screw socket for detectors)
    1x Ø 100 mm (for connection of a filter)
  • Funnel chamfered from square to round to the outlet
  • Inspection hole (450 x 300 mm) with sight glass
  • Outlet DN200 (bore according to PN10)

Suitable attachments

Suction box 1-way
ASK.SL.B.01 + ASK.SL.A.200
Suction box 2-way
ASK.SL.B.02 + ASK.SL.A.200
Suction box 4-way
ASK.SL.B.04 + ASK.SL.A.200
Suction box 6-way
ASK.SL.B.06 + ASK.SL.A.200
Swivelling arm
CE.Z.SCHWENKSCH.200.CR
Reducer
BB.Z.RED.200.150.CR DN200/150
BB.Z.RED.250.200.CR DN200/250
Rotary valve
ZRS.01.150.01.FU.AL Ø150
ZRS.01.200.01.FU.AL Ø200
