SLIDE VALVE WITH BYPASS AS.25

The AS.25 slide valve is used in suction conveyor systems for plastic granules to lock and simultaneously empty material lines. This also applies to abrasive plastic granules with glass fibre content. It closes and opens pipelines reliably and over the full cross-section even during conveyance. Several slide valves can be controlled with a single magnetic valve.

“Open/close” function

slide valve function

Make a request!

AS.25.S

AS.25.F

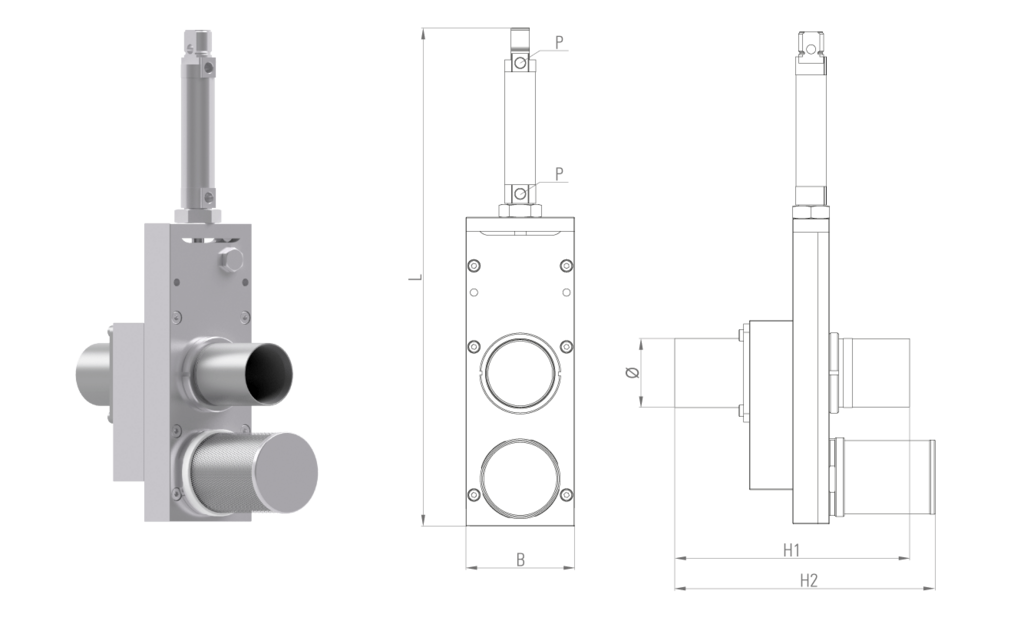

Slide valve with bypass AS.25.S

Stainless steel pipe connection
Valve housing made of aluminium
Slide plate made of PET
Stainless steel suction strainer
Ambient temperature –15/+40 °C
Operating temperature –15/+50 °C
Bulk material temperature –15/+80 °C
Compressed air supply 6-7 bar, oil-free and dry

	Ø	P	B	L	H1	H2
AS.25.040.S	40	1/8”	74	360	205	228
AS.25.050.S	50	1/8”	84	391	205	228
AS.25.060.S	60.3	1/8”	94	431	205	228
AS.25.076.S	76.1	1/8”	114	520	257	308

Slide valve with bypass AS.25.S

Slide valve with bypass AS.25.S

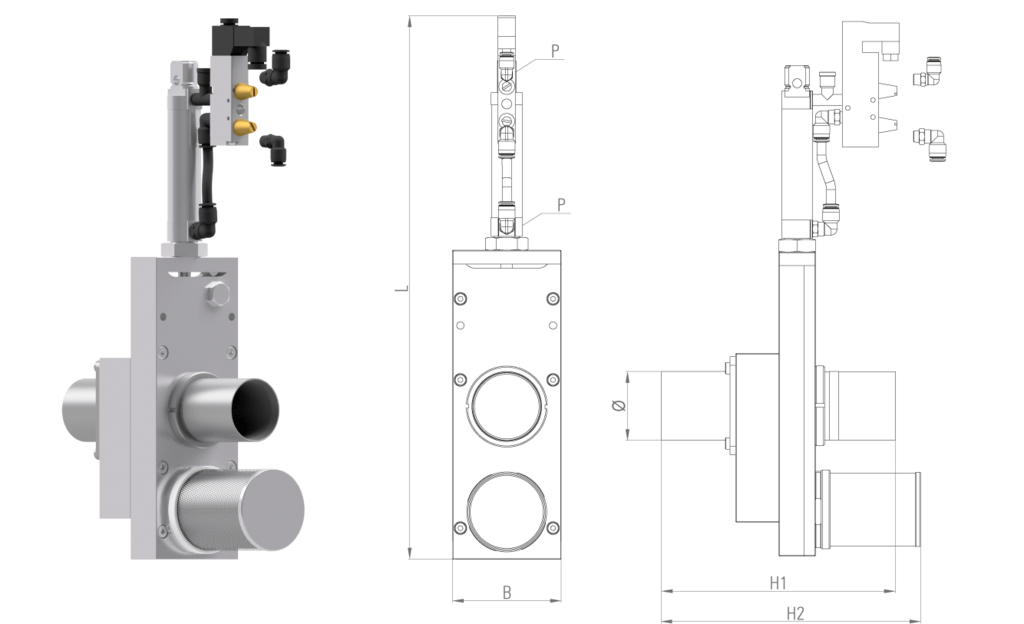

Slide normally open / bypass closed

Stainless steel pipe connection
Valve housing made of aluminium
Slide plate made of PET
Stainless steel suction strainer
Ambient temperature –5/+40 °C
Operating temperature –5/+50 °C
Bulk material temperature –5/+80 °C
Compressed air supply 6 bar, oil-free and dry
Power supply 24 V DC

A pneumatic connection piece (6 and 8 mm) is included.

	Ø	P	B	L	H1	H2
AS.25.040.S.PO.BC	40	1/8”	74	400	205	228
AS.25.050.S.PO.BC	50	1/8”	84	431	205	228
AS.25.060.S.PO.BC	60.3	1/8”	94	471	205	228
AS.25.076.S.PO.BC	76.1	1/8”	114	555	257	308

Slide normally open / bypass closed

Slide valve with bypass AS.25.S

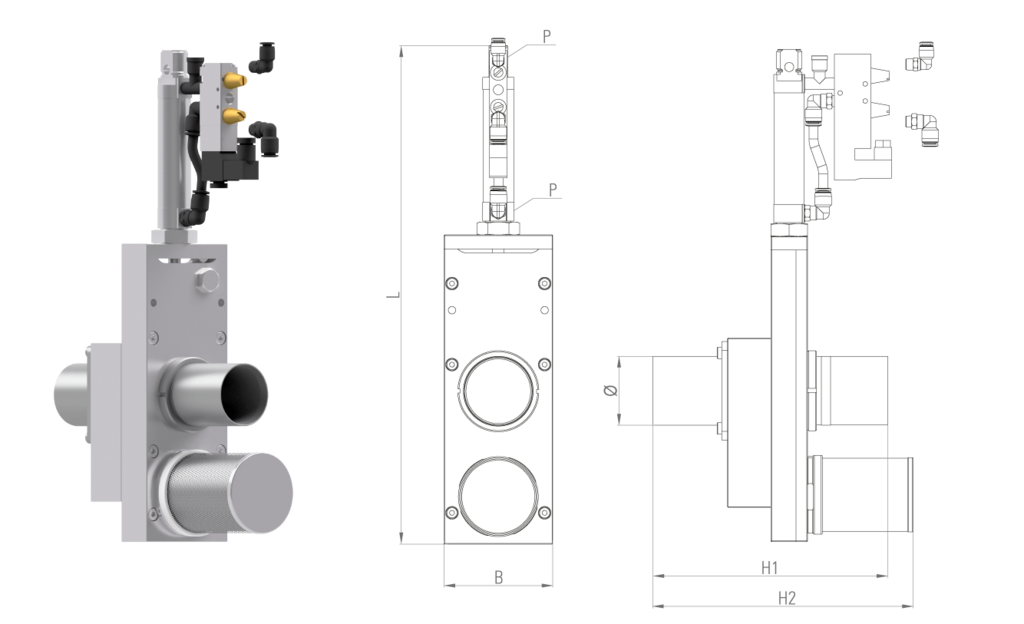

Slide normally closed / bypass open

Stainless steel pipe connection
Valve housing made of aluminium
Slide plate made of PET
Stainless steel suction strainer
Ambient temperature –5/+40 °C
Operating temperature –5/+50 °C
Bulk material temperature –5/+80 °C
Compressed air supply 6 bar, oil-free and dry
Power supply 24 V DC

A pneumatic connection piece (6 and 8 mm) is included.

Slide normally closed / bypass open

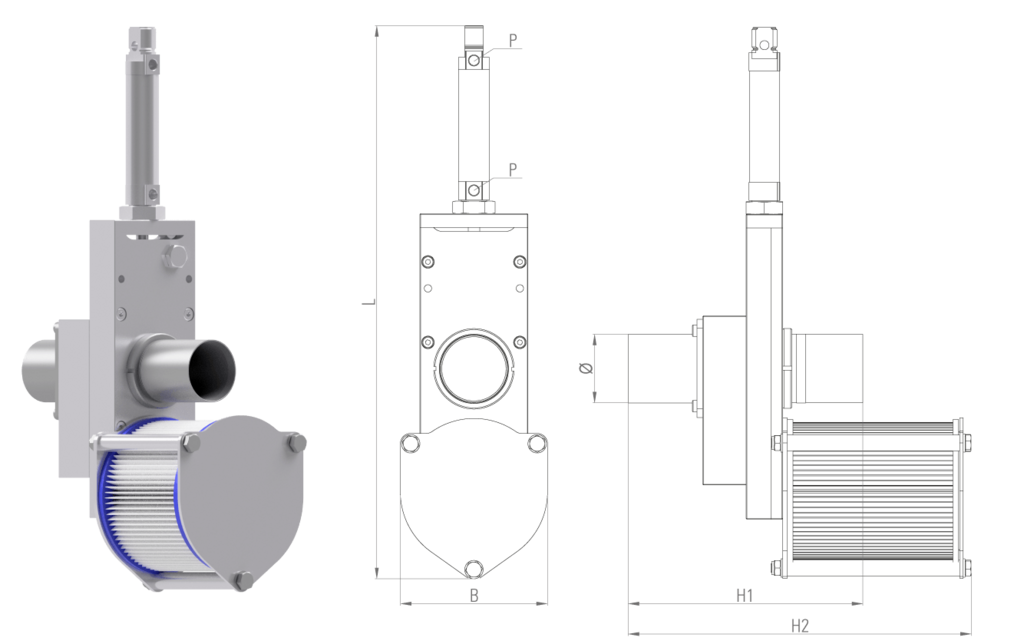

Slide valve with bypass AS.25.F

Stainless steel pipe connection
Valve housing made of aluminium
Slide plate made of PET
Filter made of polyester fleece
Ambient temperature –15/+40 °C
Operating temperature –15/+50 °C
Bulk material temperature –15/+80 °C
Compressed air supply 6 bar, oil-free and dry

	Ø	P	B	L	H1	H2
AS.25.040.F	40	1/8”	128	415	205	247
AS.25.050.F	50	1/8”	128	449	205	247
AS.25.060.F	60.3	1/8”	128	482	205	299
AS.25.076.F	76.1	1/8”	150	577	257	326

Slide valve with bypass AS.25.F

Slide valve with bypass AS.25.F

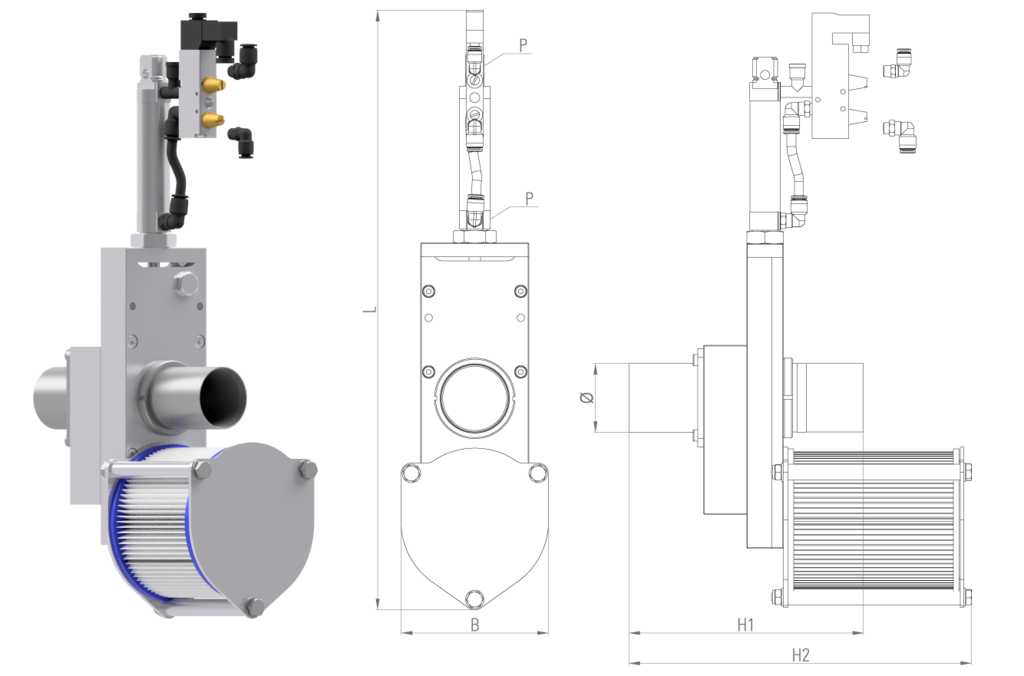

Slide normally open / bypass closed

Stainless steel pipe connection
Valve housing made of aluminium
Slide plate made of PET
Filter made of polyester fleece
Ambient temperature –5/+40 °C
Operating temperature –5/+50 °C
Bulk material temperature –5/+80 °C
Compressed air supply 6 bar, oil-free and dry
Power supply 24 V DC

A pneumatic connection piece (6 and 8 mm) is included.

Slide normally open / bypass closed

Slide valve with bypass AS.25.F

Slide normally closed / bypass open

Stainless steel pipe connection
Valve housing made of aluminium
Slide plate made of PET
Filter made of polyester fleece
Ambient temperature –5/+40 °C
Operating temperature –5/+50 °C
Bulk material temperature –5/+80 °C
Compressed air supply 6 bar, oil-free and dry
Power supply 24 V DC

A pneumatic connection piece (6 and 8 mm) is included.

Slide normally closed / bypass open
