BIGBAG EMPTYING UNIT For granules − ∢90 ° − 1000 l

This big bag emptying station is only suitable for free-flowing granules. The big bag can be conveniently attached to a forklift or an electric crane. The 1000-l container is generously dimensioned.

The product can be removed through suction (vacuum conveyance) or pneumatic pressure conveying. Various suction boxes of different sizes and with a varying number of suction points are available for the suction method. There are also three suction points provided on the side of the container. The corresponding suction pipes are available optionally.

For the variant with a DN200 outlet, a connection point for a rotary valve for pneumatic pressure conveying is provided. The conveying capacity is approx. 3–6 tonnes/h. The containers are available in aluminium or stainless steel.

1000 l outlet DN100

1000 l outlet DN200

BigBag emptying unit 1000 l
Make a request!
  • Stable steel construction (RAL9005 jet black)
  • Optionally with lifting rack (RAL1003 signal yellow) for forklift operation or electric crane (RAL5009 azure blue) with lifting cross (RAL1003 signal yellow); max. load 2000 kg, hook path 5 m
  • Inlet collar Ø 450 mm
  • Openings closed with a plate:
    3x for the attachment of guide pipes for suction probes
    2x Ø 55 mm (for connection of a screw socket for detectors) 1x Ø 100 mm (for connection of a filter)
  • Inspection hole (450 x 300 mm) with sight glass
  • Outlet DN100 (bore according to PN10)

For forklift operation

  H1 H2 H3 Big bag height h Material container
BB.CE.1000.90.100.003.17.S15.AL 4450 2700 1750 1500 200 Aluminium
BB.CE.1000.90.100.003.17.S15.CR 4450 2700 1750 1500 200 Stainless steel
BB.CE.1000.90.100.003.17.S20.AL 4950 3200 1750 2000 200 Aluminium
BB.CE.1000.90.100.003.17.S20.CR 4950 3200 1750 2000 200 Stainless steel
BB.CE.1000.90.100.003.20.S15.AL 4700 2700 2000 1500 450 Aluminium
BB.CE.1000.90.100.003.20.S15.CR 4700 2700 2000 1500 450 Stainless steel
BB.CE.1000.90.100.003.20.S20.AL 5200 3200 2000 2000 450 Aluminium
BB.CE.1000.90.100.003.20.S20.CR 5200 3200 2000 2000 450 Stainless steel

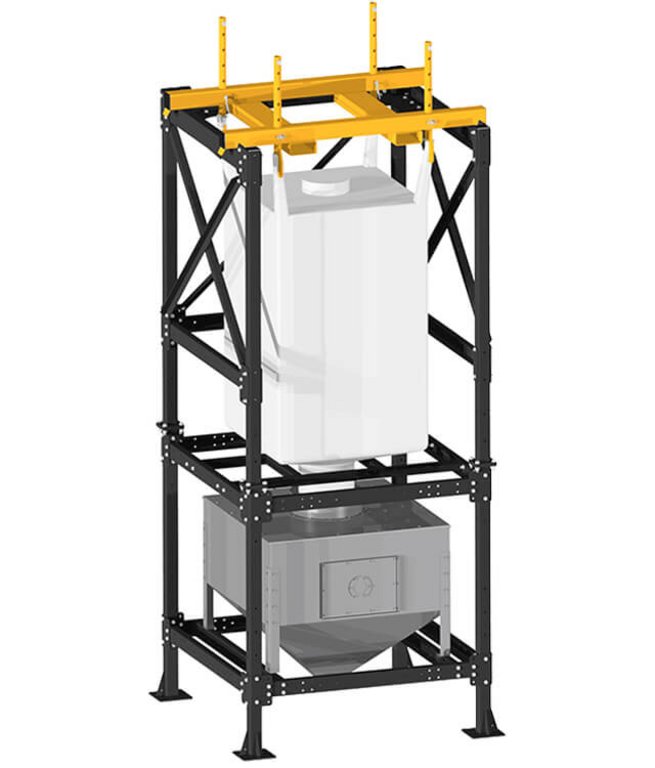

BigBag-Entleerung 1000 l für Staplerbetrieb

With electric crane

  H1 H2 H3 Big bag height h Material container
BB.CE.1000.90.100.003.17.K15.AL 4950 3200 1750 1500 200 Aluminium
BB.CE.1000.90.100.003.17.K15.CR 4950 3200 1750 1500 200 Stainless steel
BB.CE.1000.90.100.003.17.K20.AL 5450 3700 1750 2000 200 Aluminium
BB.CE.1000.90.100.003.17.K20.CR 5450 3700 1750 2000 200 Stainless steel
BB.CE.1000.90.100.003.20.K15.AL 5200 3200 2000 1500 450 Aluminium
BB.CE.1000.90.100.003.20.K15.CR 5200 3200 2000 1500 450 Stainless steel
BB.CE.1000.90.100.003.20.K20.AL 5700 3700 2000 2000 450 Aluminium
BB.CE.1000.90.100.003.20.K20.CR 5700 3700 2000 2000 450 Stainless steel

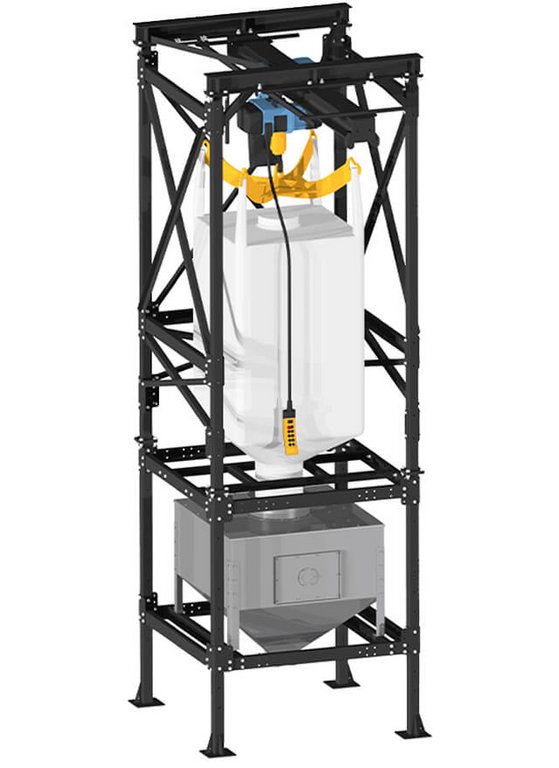

BigBag-Entleerung 1000 l mit Kettenzug
Guide pipe for suction probe
  • Made of stainless steel
    Øi
BB.CE.FSGL.90.089.CR Guide pipe 82
BB.CE.FSGL.DECKEL.089.CR Cover with wire rope ---
BB.CE.FSGL.90.108.CR Guide pipe 102
BB.CE.FSGL.DECKEL.108.CR Cover with wire rope ---
View of rear

               guide pipe       cover

Suitable attachments

Suction box 1-way
ASK.CE.1
Suction box 2-way
ASK.CE.2
Suction box 4-way
ASK.SL.B.04 + ASK.SL.A.CE
Suction box 6-way
ASK.SL.B.06 + ASK.SL.A.CE
Swivelling arm
CE.Z.SCHWENKSCH.100.CR
BigBag emptying unit 1000 l
Make a request!
  • Stable steel construction (RAL9005 jet black)
  • Optionally with lifting rack (RAL1003 signal yellow) for forklift operation or electric crane (RAL5009 azure blue) with lifting cross (RAL1003 signal yellow); max. load 2000 kg, hook path 5 m
  • Inlet collar Ø 450 mm
  • Openings closed with a plate:
    2x Ø 55 mm (for connection of a screw socket for detectors)
    1x Ø 100 mm (for connection of a filter)
  • Inspection hole (450 x 300 mm) with sight glass
  • Outlet DN200 (bore according to PN10)

With electric crane

  H1 H2 H3 Big bag height h Material container
BB.CE.1000.90.200.000.20.K15.AL 5200 3200 2000 1500 450 Aluminium
BB.CE.1000.90.200.000.20.K15.CR 5200 3200 2000 1500 450 Stainless steel
BB.CE.1000.90.200.000.20.K20.AL 5700 3700 2000 2000 450 Aluminium
BB.CE.1000.90.200.000.20.K20.CR 5700 3700 2000 2000 450 Stainless steel
BB.CE.1000.90.200.000.22.K15.AL 5450 3200 2250 1500 700 Aluminium
BB.CE.1000.90.200.000.22.K15.CR 5450 3200 2250 1500 700 Stainless steel
BB.CE.1000.90.200.000.22.K20.AL 5950 3700 2250 2000 700 Aluminium
BB.CE.1000.90.200.000.22.K20.CR 5950 3700 2250 2000 700 Stainless steel

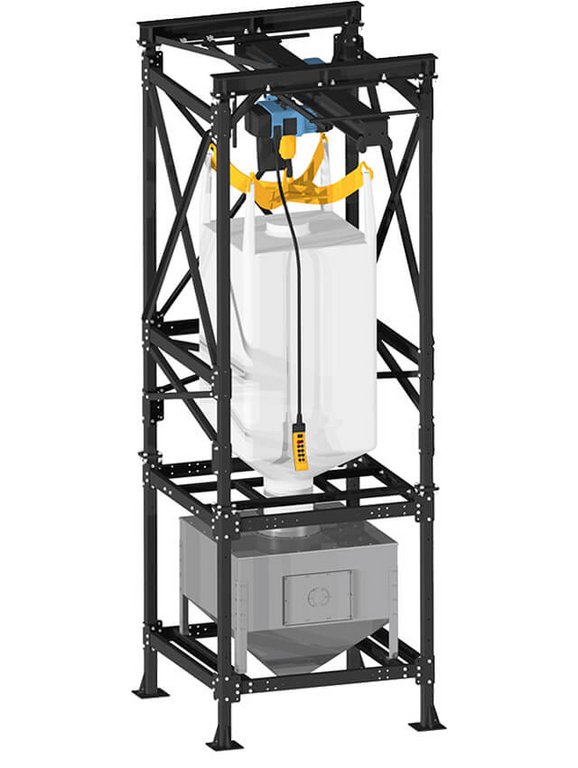

BigBag-Entleerung 1000 l mit Kettenzug

Suitable attachments

Suction box 1-way
ASK.SL.B.01 + ASK.SL.A.DN200
Suction box 2-way
ASK.SL.B.02 + ASK.SL.A.DN200
Suction box 4-way
ASK.SL.B.04 + ASK.SL.A.DN200
Suction box 6-way
ASK.SL.B.06 + ASK.SL.A.DN200
Swivelling arm
CE.Z.SCHWENKSCH.200.CR
Reducer
BB.Z.RED.200.150.CR DN200/150
BB.Z.RED.250.200.CR DN200/250
Rotary valve
ZRS.01.150.01.FU.AL Ø150
ZRS.01.200.01.FU.AL Ø200
