CLEANING VALVE LSV

The LSV cleaning valve is used in suction conveyor systems. When open, filtered ambient air flows into the material line, the material flow is interrupted and the subsequent material line is sucked empty. Several cleaning valves can be controlled with a single magnetic valve.

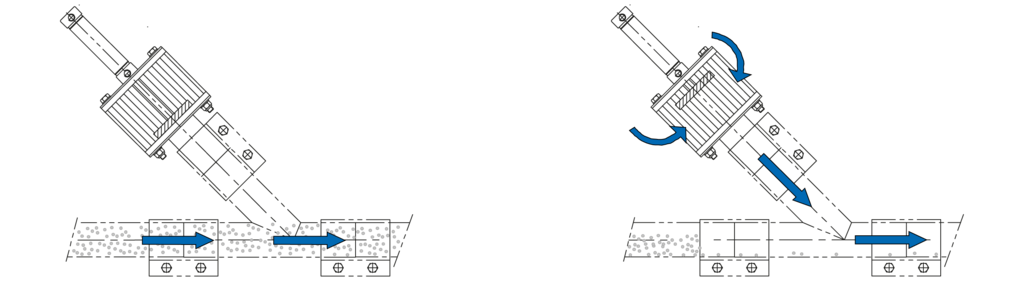

“Open/close” function
“Open/close” function
Make a request!

Cleaning valve

Cleaning valve LSV.10
  • Pipe connection made of aluminium
  • Suction filter made of polyester fleece
  • Bulk material temperature –15/+80 °C
  • Ambient temperature –15/+40 °C
  • Operating temperature –15/+50 °C
  • Compressed air supply 6-7 bar, oil-free and dry

Dimensions

  Ø P □ L
LSV.10.040 40 1/8” 125 x 125 330
LSV.10.050 50 1/8” 125 x 125 330
LSV.10.060 60.3 1/8” 125 x 125 379
LSV.10.065 65 1/8” 151 x 151 450
LSV.10.070 70 1/8” 151 x 151 450
LSV.10.076 76.1 1/8” 151 x 151 450
Cleaning valve LSV.10
Cleaning valve LSV.10

Cleaning valve normally open

  • Pipe connection made of aluminium
  • Suction filter made of polyester fleece
  • Bulk material temperature –5/+80 °C
  • Ambient temperature –5/+40 °C
  • Operating temperature –5/+50 °C
  • Compressed air supply 6 bar, oil-free and dry
  • Power supply 24 V DC

A pneumatic connection piece (6 and 8 mm) is included.

Dimensions

  Ø P □ L
LSV.10.040.PO.BO 40 1/8” 125 x 125 330
LSV.10.050.PO.BO 50 1/8” 125 x 125 330
LSV.10.060.PO.BO 60.3 1/8” 125 x 125 379
LSV.10.065.PO.BO 65 1/8” 151 x 151 450
LSV.10.070.PO.BO 70 1/8” 151 x 151 450
LSV.10.076.PO.BO 76.1 1/8” 151 x 151 450
Cleaning valve LSV.10 normally open
Cleaning valve LSV.10

Cleaning valve normally closed

  • Pipe connection made of aluminium
  • Suction filter made of polyester fleece
  • Bulk material temperature –5/+80 °C
  • Ambient temperature –5/+40 °C
  • Operating temperature –5/+50 °C
  • Compressed air supply 6 bar, oil-free and dry
  • Power supply 24 V DC

A pneumatic connection piece (6 and 8 mm) is included.

Dimensions

  Ø P □ L
LSV.10.040.PC.BC 40 1/8” 125 x 125 368
LSV.10.050.PC.BC 50 1/8” 125 x 125 368
LSV.10.060.PC.BC 60.3 1/8” 125 x 125 417
LSV.10.065.PC.BC 65 1/8” 151 x 151 484
LSV.10.070.PC.BC 70 1/8” 151 x 151 484
LSV.10.076.PC.BC 76.1 1/8” 151 x 151 484
Cleaning valve normally closed
