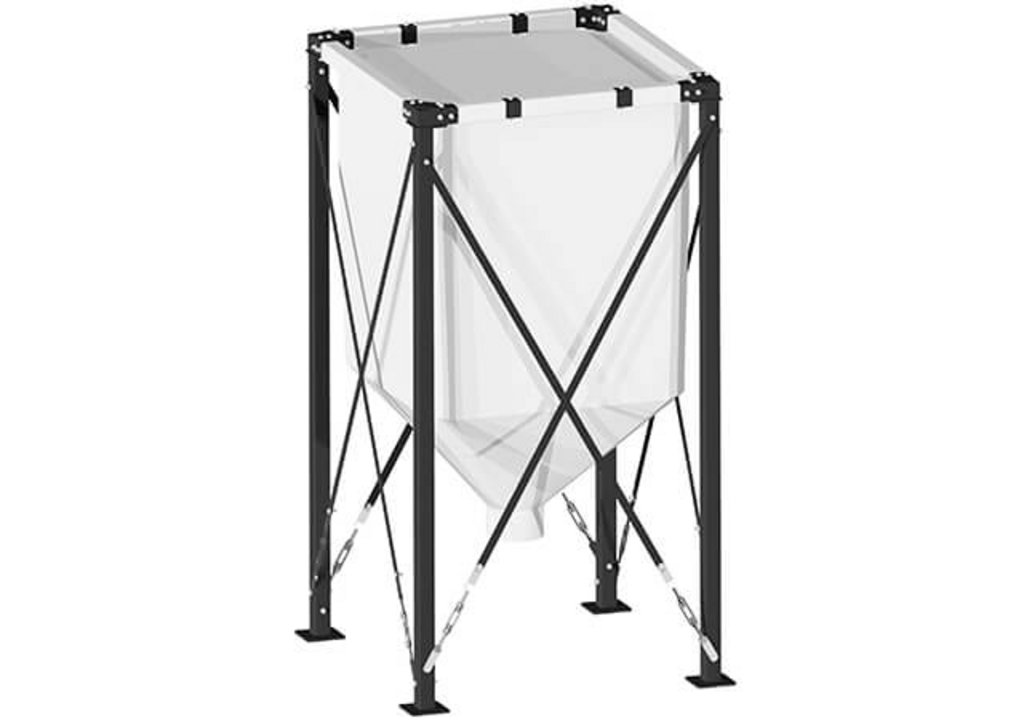

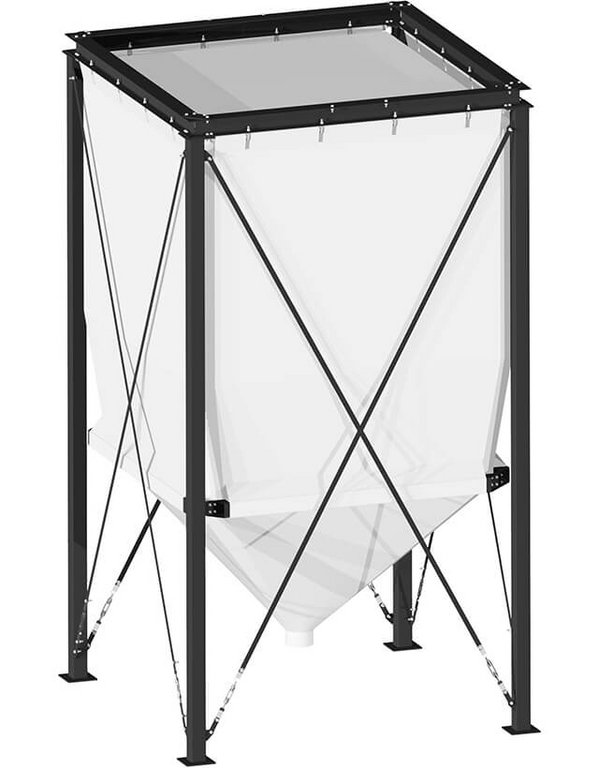

Our flexible indoor silos SFLEX consist of a very stable steel structure and fabric bags, which are ideally suited for the storage of granules, regrind and gravel, as they are highly tear-resistant, breathable, electrostatically conductive and food-safe. We take into account your specific bulk solid characteristics and select the suitable fabric as well as dimension the silos accordingly.
The standard dimensions listed on this page can be individually adapted to any hall dimension in order to optimally use the floor space and hall height available. For the silos to be filled by truck, the filling pipes are placed through the hall wall to the outside. We manufacture silo sizes up to 50 tonnes of granules (two truck fillings) and project-related even up to 60 tonnes.
| m³ | Moulding frame | H | |
|---|---|---|---|
| SFLEX.25.25.29.071.80.06.1 | 7.1 | yes | 2900 |
| SFLEX.25.25.34.097.80.06.1 | 9.7 | yes | 3400 |
| SFLEX.25.25.39.124.80.06.1 | 12.4 | yes | 3900 |
| SFLEX.25.25.44.150.80.06.1 | 15.0 | yes | 4400 |
| SFLEX.25.25.49.177.80.06.1 | 17.7 | yes | 4900 |
| SFLEX.25.25.54.203.80.06.1 | 20.3 | yes | 5400 |
| SFLEX.25.25.59.230.80.06.1 | 23.0 | yes | 5900 |
| SFLEX.25.25.64.256.80.06.1 | 25.6 | yes | 6400 |
