FILLING

Our indoor silos SFLEX can be filled via pneumatic pressure or vacuum conveying.

When filling with pneumatic pressure conveying (silo vehicles, mobile positive conveying units, ...) with pressures of 0.3–1.5 bar, we prefer using filling pipes with a cross-section of DN100. The filling pipes can be brought together centrally at a coupling point, if needed. Filling can take place by means of silo vehicles. For filling from 25 kg bags or big bags, we offer high-performance mobile positive conveying units with throughputs of up to approx. 9 tonnes/h.

For integration in central material feeding systems, SFLEX indoor silos are often filled with vacuum hopper loaders. For this we offer attachment options with a large number of adapter plates that are suitable for your vacuum hopper loader. Get in touch with us if you don't see your specific fitting dimension.

Filling pipe

Filling connections

Connection for filling bend
  • Centred on the silo roof
  • Incl. holder for MAX detector
  □
SFLEX.Z.01.FLRB.15.15.9005 1500 x 1500
SFLEX.Z.01.FLRB.20.20.9005 2000 x 2000
SFLEX.Z.01.FLRB.25.25.9005 2500 x 2500
SFLEX.Z.01.FLRB.30.30.9005 3000 x 3000
SFLEX.Z.01.FLRB.35.35.9005 3500 x 3500
SFLEX.Z.01.FLRB.40.40.9005 4000 x 4000
SFLEX.Z.01.FLRB.45.45.9005 4500 x 4500
Filling pipe DN100
  • Filling bend made of stainless steel for filling in the centre
  • Rising pipe made of aluminium or stainless steel
  • With holding clamp for fastening to the steel structure
  • Truck coupling Storz-A
  Material straight pipes H
SFLEX.Z.02.FL.100.5000.AL Aluminium 5000
SFLEX.Z.02.FL.100.5000.CR Stainless steel 5000
SFLEX.Z.02.FL.100.7500.AL Aluminium 7500
SFLEX.Z.02.FL.100.7500.CR Stainless steel 7500
Central filling point DN100
  • As a surcharge to the filling pipe at each individual silo
  • Brackets for fastening the pipes to the silo roof and to the vertical face of the frontmost silo
  • Bends made of stainless steel, filling pipes made of aluminium or stainless steel
  Material straight pipes Number of silos
SFLEX.Z.02.FLZ.02.AL Aluminium 2
SFLEX.Z.02.FLZ.02.CR Stainless steel 2
SFLEX.Z.02.FLZ.03.AL Aluminium 3
SFLEX.Z.02.FLZ.03.CR Stainless steel 3
SFLEX.Z.02.FLZ.04.AL Aluminium 4
SFLEX.Z.02.FLZ.04.CR Stainless steel 4
SFLEX.Z.02.FLZ.05.AL Aluminium 5
SFLEX.Z.02.FLZ.05.CR Stainless steel 5
SFLEX.Z.02.FLZ.06.AL Aluminium 6
SFLEX.Z.02.FLZ.06.CR Stainless steel 6
SFLEX.Z.02.FLZ.07.AL Aluminium 7
SFLEX.Z.02.FLZ.07.CR Stainless steel 7
SFLEX.Z.02.FLZ.08.AL Aluminium 8
SFLEX.Z.02.FLZ.08.CR Stainless steel 8
Connection for vacuum hopper loader
  • Centred on the silo roof
  • Incl. holder for MAX detector

Dimensions

  □
SFLEX.Z.01.SFG.15.15 1500 x 1500
SFLEX.Z.01.SFG.20.20 2000 x 2000
SFLEX.Z.01.SFG.25.25 2500 x 2500
SFLEX.Z.01.SFG.30.30 3000 x 3000
SFLEX.Z.01.SFG.35.35 3500 x 3500
SFLEX.Z.01.SFG.40.40 4000 x 4000
SFLEX.Z.01.SFG.45.45 4500 x 4500
Adapter plate for vacuum hopper loader
  • Made of stainless steel

Dimensions

  Connection size*
CE.Z.ADAPT.SFG.XXX.280.CR Di 250; LKR 280; 6 x M6
CE.Z.ADAPT.SFG.XXX.225.CR Di 202; LKR 225; 8 x M6
CE.Z.ADAPT.SFG.XXX.330.CR Di 311.5; LKR 330; 8 x M6
CE.Z.ADAPT.SFG.XXX.268.CR Di 226; 190 x 190; 4 x M8
CE.Z.ADAPT.SFG.XXX.280.CR Di 240; LKR 280; 8 x M8
CE.Z.ADAPT.SFG.XXX.195.CR Di 175; LKR 195; 8 x M6
CE.Z.ADAPT.SFG.XXX.225.CR Di 200; LKR 225; 8 x M6
CE.Z.ADAPT.SFG.XXX.260.CR Di 240; LKR 260; 8 x M6
CE.Z.ADAPT.SFG.XXX.325.CR Di 300; LKR 325; 8 x M6
CE.Z.ADAPT.SFG.XXX.265.CR Di 240; LKR 265; 8 x M8
CE.Z.ADAPT.SFG.XXX.280.CR Di 240; LKR 280; 4 x M8
CE.Z.ADAPT.SFG.XXX.245.CR Di 208; LKR 245; 4 x M8
CE.Z.ADAPT.SFG.XXX.335.CR Di 305; LKR 335; 4 x M6
CE.Z.ADAPT.SFG.XXX.280.CR Di 250; LKR 280; 8 x M6
CE.Z.ADAPT.SFG.XXX.354.CR Di 300; LKR 354; 6 x M6

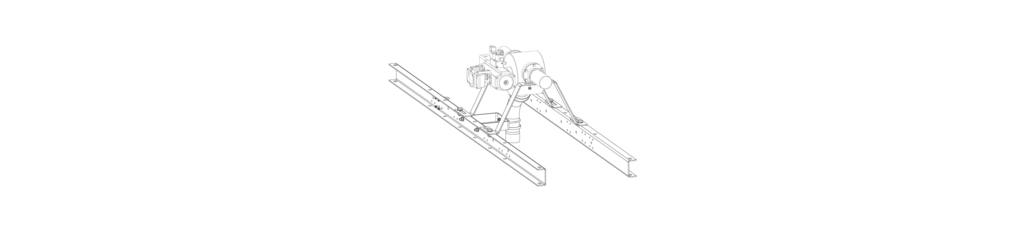

Connection for filling diverter valve
  • Centred on the silo roof
  • Incl. holder for MAX detector
  □ Ø Diverter valve
SFLEX.Z.01.W.080.25.25.9005 2500 x 2500 65 / 76.1
SFLEX.Z.01.W.080.30.30.9005 3000 x 3000 65 / 76.1
SFLEX.Z.01.W.080.35.35.9005 3500 x 3500 65 / 76.1
SFLEX.Z.01.W.080.40.40.9005 4000 x 4000 65 / 76.1
SFLEX.Z.01.W.080.45.45.9005 4500 x 4500 65 / 76.1
SFLEX.Z.01.W.100.25.25.9005 2500 x 2500 88.9 / 108
SFLEX.Z.01.W.100.30.30.9005 3000 x 3000 88.9 / 108
SFLEX.Z.01.W.100.35.35.9005 3500 x 3500 88.9 / 108
SFLEX.Z.01.W.100.40.40.9005 4000 x 4000 88.9 / 108
SFLEX.Z.01.W.100.45.45.9005 4500 x 4500 88.9 / 108
