BIGBAG EMPTYING UNIT For granules − ∢90 ° − 2000 l

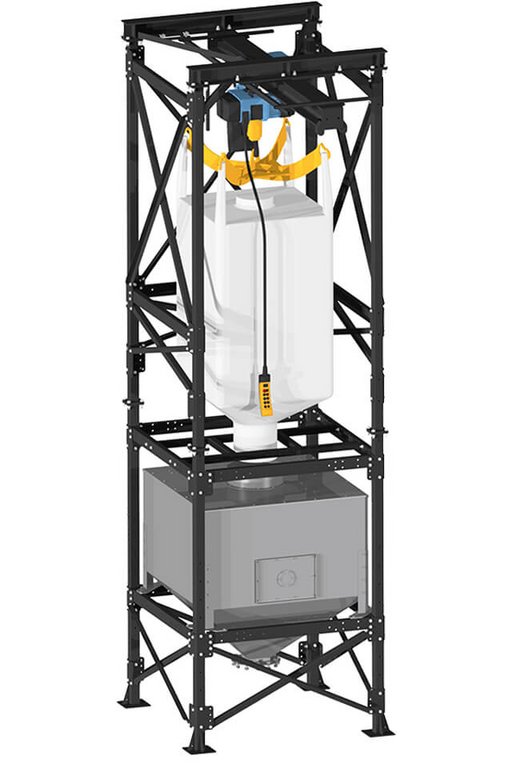

This big bag emptying station is only suitable for free-flowing granules. The big bag can be conveniently attached to an electric crane. The 2000-l container is dimensioned to be able to hold a complete big bag.

The product can be removed through suction (vacuum conveyance) or pneumatic pressure conveying. Various suction boxes of different sizes and with a varying number of suction points are available for the suction method. There are also three suction points provided on the side of the container. The corresponding suction pipes are available optionally.

For the variant with a DN250 outlet, a connection point for a rotary valve for pneumatic pressure conveying is provided. The conveying capacity is approx. 6–10 tonnes/h. The containers are available in aluminium or stainless steel.

2000 l outlet DN250

BigBag emptying unit 2000 l
  • Stable steel construction (RAL9005 jet black)
  • Electric crane (RAL5009 azure blue) with lifting cross (RAL1003 signal yellow); Max. load capacity 2000 kg, hook path 5 m
  • Inlet collar Ø 450 mm
  • Openings closed with a plate:
    2x Ø 55 mm (for connection of a screw socket for detectors)
    1x Ø 100 mm (for connection of a filter)
  • Inspection hole (450 x 300 mm) with sight glass
  • Outlet DN250 (bore according to PN10)

Suitable attachments

Suction box 1-way
ASK.SL.B.01 + ASK.SL.A.DN250
Suction box 2-way
ASK.SL.B.02 + ASK.SL.A.DN250
Suction box 4-way
ASK.SL.B.04 + ASK.SL.A.DN250
Suction box 6-way
ASK.SL.B.06 + ASK.SL.A.DN250
Swivelling arm
CE.Z.SCHWENKSCH.250.CR
Reducer DN250/200
BB.Z.RED.250.200.CR
Rotary valve
ZRS.01.200.01.FU.AL Ø200
ZRS.01.250.01.FU.AL Ø250
